Surgery camera

product description:

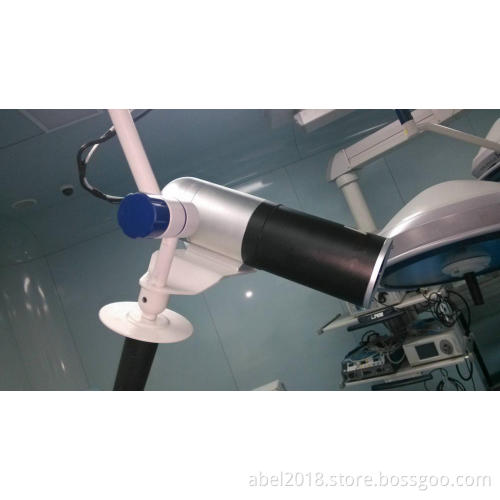

Rui Jing video field camera / surgery field HD camera, used in the size of surgery can be recorded throughout the surgery can be used to fixed the operating table, mobile ambulance, mobile transfer beds, the shadow of the surgery light is super Inhibitory effect
    Shooting like a clear image out and there are 10 times / 20 times / 30 times the zoom optional, optical zoom to the pores clearly visible.
    Product of the operation of the most simplified, easy to operate over the regulation, the product shell with strong corrosion resistance, by the medical disinfection syrup, the nature of the salty, acidic water minimal impact.
    Products using SDI transmission line, up to nearly 100 meters. Convenient wiring to the main studio to watch. Full HD 1080P60 resolution frame, playback without smear, the details of each action can be seen in the extreme.

RJ-HQ20S series is the company a fully imported type, built-in imported 20x optical zoom, 16x digital zoom HD integrated movement,

Support 1080P / 59.94, 50 digital output broadcasting high-definition camera of SONY VISCA, PELCO P / D RS232C and RS422 communication protocol.

The high-definition video cameras are widely used in video conferencing, distance learning, surveillance, medical, conferences, training rooms, courts, the Internet, communications, radio and television, etc.

Product Features:

● 20x optical zoom, 16x digital zoom

● horizontal resolution: 1 /2.8 CMOS 500 megapixel

● High sharp edge ultra-high resolution image restoration, high color reproduction

● black and white horizontal and vertical interference, ultra-fine image noise reduction effect

● Super high image contrast high lumens image grayscale to 10

● Adopt the industry's latest UHF LVDS signal processing to meet the technical requirements of today's 4k ultra HD images

● High-speed autofocus is less than 1 second and high-speed smooth zoom speed

● electronic switch upside down and 360-degree rotation

VISCA Computer Control Software Expansion Agreement

● two kinds of high-definition video (DVI can be a variety of high-definition mode output), a SD video output at the same time, uninterruptible power fast switching

● Variable lens zoom control speed: Through the built-in menu settings can be set to zoom speed 1-7

● Output HD-SDI signals fully support SMPTE494M / 292M / SMPTE259M with a transfer rate of 2.97Gpb / s

Technical Parameters

model
 RJ-HQ20S

Imaging equipment
 1 /2.8 CMOS / 5 Megapixel / Dynamic Pixels Over 2 million at 50P / 60P

Image system
 1.8V Low-Power, Very High-Speed 3Gbt / s FPGA Processor

Horizontal resolution
 1080P / 1080i

Lens
 20 times optical, 16 times the number

Aperture focal length
 F = 1.6-3.5, f = 4.7-94

Horizontal perspective
 2.9 degrees to 55.4 degrees

Object distance
 20-1000mm

Minimum illumination
 1 .0Lux / 0.05Lux

Gain
 Automatic / manual settable

Focus
 Automatic / manual settable

Signal to noise ratio
 > 50dB

Shutter speed
 1/4 to 1/10000 automatic manual can be set

White balance
 Auto / Manual / Zoom Angle worm hair / outdoor / indoor / one-touch trigger

Digital noise reduction
 High Medium Low

Synchronization system
 Internal synchronization

Video output
 HD-SDI

Camera control interface
 RS-232C (VISCA protocol) / RS-422 (VISCA 180 ° (pan), 0.1-120 protocol) PELCO: P / D

HD format HD
 1080P / 59.94 / 50 / 29.97 / 25; 1080i / 59.94 / 50; 720P / 59.94 / 50 / 29.97 / 25

HD interface HD-SDI
 HD-SDI digital non-coding Y.

Transmission distance
 RG59: 100 m / RG11: 200 m;

size
 25CM * 9CM

Operating temperature
 0-40 ° C

Storage temperature
 -2 0 ° C to 60 ° C

Power consumption
 DC12V / 4W

weight
 1kg

Random Accessories
 AC adapter (1), remote control (1), AC adapter cable (1), manual (1)
