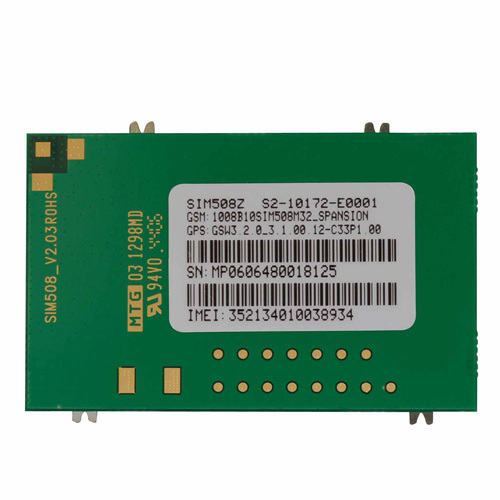

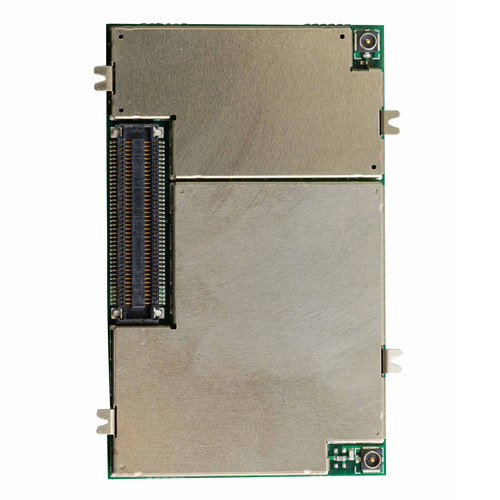

GSM GPRS & GPS Module

SIM508/548 module is a Tri-Band/Quad-Band GSM/GPRS-enabled module that is also equipped with AGPS technology. The compact design of the SIM508/548 makes it easy to integrate GSM/GPRS & GPS as an all-in-one solution. You will save significantly both time and cost for the integration of additional hardware components.

The combination of both technologies can fit almost all the space requirement in your applications, it allows valuable asset to be tracked  at any location and anytime with signal coverage.

Physical features
  • Overall dimensions: 55mm x 34mm x 3mm
  • Weight: approx.12g
  • Normal operation temperature: -20 °C to +60 °C
  • Restricted operation temperature: -30 °C to -20 °C and +60 °C to +80 °C
  • Storage temperature: -40°C to +85°C

GSM/GPRS specifications
  • Tri-Band GSM 900/1800/1900MHz, or Quad-Band GSM 850/900/1800/1900 MHz
  • GPRS multi-slot class 10/8
  • GPRS mobile station class B
  • Compliant to GSM phase 2/2+
     - Class 4(2W @ GSM850/900MHz)
     - Class 1(1W @ GSM1800/1900MHz)
  • Control via AT commands
     (GSM 07.07 and 07.05 and SIMCom enhanced AT commands)
  • SIM application tool kit
  • Low power consumption
  • Supply voltage range: 3.4V - 4.5V

Specifications for GPS
  • Receiver 20 channels, L1 1575.42 MHz, C/A code 1,023MHz chip rate
  • Accuracy Position 2.5m CEP
     – without SA/Velocity 0.1m/s
     – without SA/Time 1μs synchronized to GPS time
  • Position with DGPS/SBAS: 2.0m CEP
  • Date WGS-84
  • Acquisition rate (TTFF defined at 95% of first position local station)
     – Hot start < 1s, average, open sky
     – Warm start :35s, average, open sky
     – Cold start :35s, average, open sky
  • Operating voltage 3.3V DC ±5%
  • Low power consumption about 160mW at 3.3 V(full power)
  • Protocols
     – NMEA-0183
     – SiRF binary
     – RTCM SC-104
  • Crystal oscillator (TCXO), temperature compensated with frequency stability of ±0.5ppm
  • Memory: On-chip 4Mbit FLASH and 1Mbit SRAM
