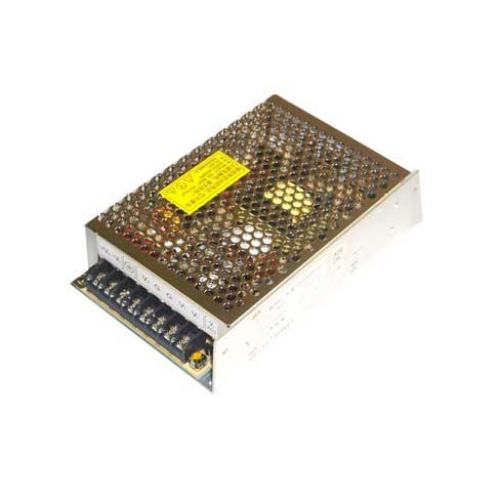

100Watts Dual Output DCM-48D100D5+12

MODEL

DCM-48D100D5+12

OUTPUT

Ouput Number

V1

V2

DC Output

5.5V

12.0V

Rated Current

15.0A

0.8A

Current Range Note 1

0 ~15.0A

0~0.8A

Ripple and Noise Note 2

0~50℃

100mV

120mV

Voltage Accuracy

±3.0%

±20.0%

Line Regulation

±0.5%

±1.0%

Load Regulation

±2.0%

±20.0%

Set-up Time

＜2.0S (48Vdc input, Full load)

Hold up Time

/

Temperature Coefficient

±0.03%/℃

±0.1%/℃

Overshoot and Undershoot

<5.0%

INPUT

Voltage Range

36Vdc--60Vdc

Frequency Range

/

Efficiency ( Typical)

75%@48Vdc,

DC Current (max.)

3.5A

Inrush Current (Typical)

/

Leakage Current

/

PROTECTION

Over Power

110%~165% of rated output power, auto recovery

Over Current

110%~170% of rated output current, auto recovery

Over Voltage

V1:6.5V~9.0V auto recovery

Shorted Circuit

Long-time; auto recovery

ENVIRONMENT

Operating amb.Temp.& Hum.

0℃~50 ; 20%~90%RH No condensing℃

Storage Temp. & Hum.

-20℃~80 ; 10%~95%RH No condensing℃

SAFETY &EMC (Note 3)

Safety Standards

GB4943-2001; EN60950-1:2006

Withstand Voltage

Primary-Secondary:0.5KVdc≤15mA.Primary-PG:0.5KVdc≤10mA.Secondary-PG:0.5KVdc≤5mA.

Isolation Resistance

≥100M ohms

EMI Conduction&Radiation

/

Harmonic Current

/

EMS Immunity

/

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (2℃, Full load)

Dimension (L*W*H)

160×98×38mm

Cooling method

Cooling by free air convection

NOTE

1. All parameters NOT specially mentioned are measured at rated input, rated load and 2℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.
