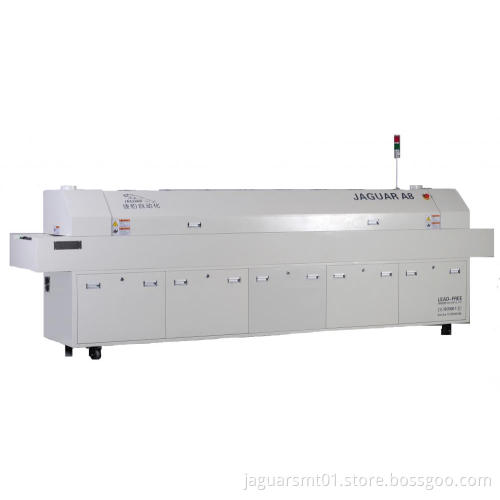

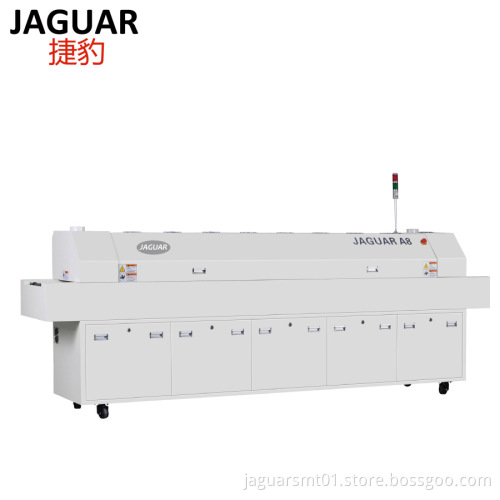

Mini Economic Reflow oven Solder Machines SMT Automatic Soldering Machine LED bulb Making Machine
-
USD5000≥1 Set/Sets
- Payment Type:
- T/T
- Incoterm:
- FOB, CFR
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T |
|---|---|
| Incoterm: | FOB,CFR |
|
Model |
JAGUAR M8 |
|
|
Heating System |
Number of heating zones |
UP 8/BOTTOM8 |
|
Length of heating zones |
2900MM |
|
|
Heating mode |
hot air |
|
|
Cooling Mode |
Force air |
|
|
Conveyor System |
Max. Width of PCB |
350mm |
|
Mesh belt width |
400mm |
|
|
Transmission Direction |
L→R(or R→L) |
|
|
Transmission Net Height |
880±20mm |
|
|
Transmission type |
Mesh and chain |
|
|
Range of rail width |
0-300mm |
|
|
Conveyor speed |
0-1500mm/min |
|
|
Auto/manual Lubrication |
standard |
|
|
Upper hood method |
Manual(option:auto) |
|
|
Fixed rail side |
Front rail fixed(option: rear rail fixed) |
|
|
Components high |
Top and bottom 25mm |
|
|
Control system |
Power supply |
5line 3phase 380V 50/60Hz |
|
Total power |
40kw |
|
|
Starting power |
38kw |
|
|
Normal power consumption |
4KW |
|
|
Warming time |
About 20 mins |
|
|
Temp. setting range |
Room temperature-300℃ |
|
|
Temp. control method |
PLC & PC |
|
|
Temp. control precision |
±1℃ |
|
|
Temp. deviation on PCB |
±2℃ |
|
|
Data storage |
Process Data and status storage(80GB) |
|
|
Nozzle plate |
Aluminum Alloy Plate |
|
|
Abnormal Alarm |
Abnormal temp. (extra-high/extra-low temp.) |
|
|
Board dropped alarm |
Tower light: Yellow-warming, Green-normal, Red-abnormal |
|
|
General |
Dimension(L*W*H) |
4400×1100×1490mm |
|
Weight |
1000KG |
|
|
Color |
Computer gray |
|
