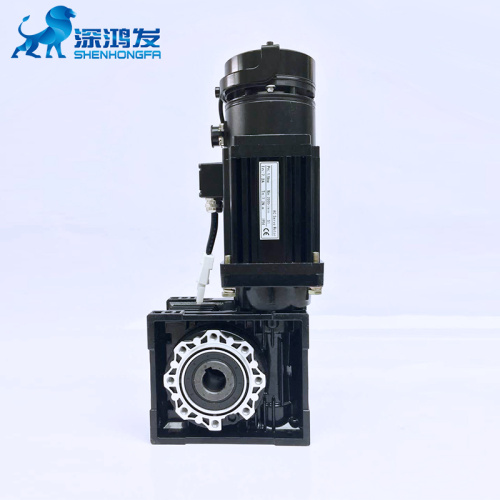

1.5KW high speed roll-up door motor

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

220V 50Hz/60Hz IP65 High Speed Door Servo System Motor and Servo Controller (PE200B)
new high speed door drive and control servo system Instructions:

precision

the systerm use full closed-loop servo control and double encoder design ,this is to ensure long operating life and to prevent overshooting during operating
stability	the systerm utilizes integrated design concept ,in order to Roller Shutter Door simplify internal wiring and to prevent malfunction cause by wiring and terminal connections
high speed	motor max speed is 2500rpm ; door max operating speed is 2m/s
smooth	the torque servo systerm can adjust torque to the load automatically ,and its use S speed curve mode step less speed regulating to ensure a smooth operation.
custom-made	each systerm's operating control order and mode can be custom made to suit each door ,to ensure max operating condition . The systerm has a unique order and more memory mode and one key recover mode.
safety	the systerm has a build in emergeny stop signal and control order ,the motor can be ativated within 30 millsecond after receive the order ,to ensure maximum safety.
high usage	the systerm is benign to suit continuous high usage,and it can applied to high frequency high speed passage way .
energy efficiency	the rare earth permanent magnet synchronous motor utinizes rare earth PMSM'S output and overload are twice higher han the asynchronous motor ,also compare to the asynchronous motor, the rare earth PMSM is more energy efficient ,lighter, has a slower heating rate ,and bigger torque.

Motor Description

Model	Description	Power
PE200	high speed door servo systerm	750W servo motor+10 times RV63 reducer
PE2000	Ultrahigh speed high speed door servo systerm	750W servo motor+7.5 times RV63 reducer
PE500	high speed spiral door servo systerm	1500W servo motor+10 times RV63 reducer

Motor Specifications

Model	PE200	PE2000	PE500
Rated output	750W	750W	1500W
Speed	0-2000rpm	0-2000rpm	0-2000rpm
Rated output speed	0-200rpm	0-260rpm	0-200rpm
Maximum Torque	100N.M	75N.M	150N.M
Rated torque	35N.M	30N.M	50N.M
Temperatuer rise	<30°C	<30°C	<30°C
Operating Temperatuer	-40°C-60°C	-40°C-60°C	-40°C-60°C
Torque managment systerm	Torque servo systerm	Torque servo systerm	Torque servo systerm
Adaptation door area	2-20 square meter	2-15 square meter	2-35 square meter
Limit mode	Absolute Encoder	Absolute Encoder	Absolute Encoder
Manual release	lectro mechanical hand wheel/winch
Self-locking mode	Electro mechanical brake	Electro mechanical brake	Electro mechanical brake
Weight	10kg	10kg	28.8kg
