Automatic Sliding Door for Office Building

Automatic sliding door for office building

There are three main methods for the operation of modern automatic doors.
1 foot pedal type: a pressure switch is installed under the pedal.
2 Photoelectric beam type: A light beam emitting device and a photoelectric sensing device are disposed near the door.
3 button mode: Press the button like a switch to open the door leaf. The automatic door opens and closes the door leaf by sliding, hinge or folding. In order to prevent theft, special equipment must be installed at the same time. For example, an automatic door for a home needs to be equipped with a person identification device or a television monitor, and the personnel outside the home are strictly restricted. Automatic doors have been widely used in shopping malls, hotels, restaurants, airports, stations, banks and other occasions.
It is automatically opened and closed by various signals, and has a general term for operating devices, sensing devices, and door components. (Inductive retractable doors are detailed in the outdoor gate.)

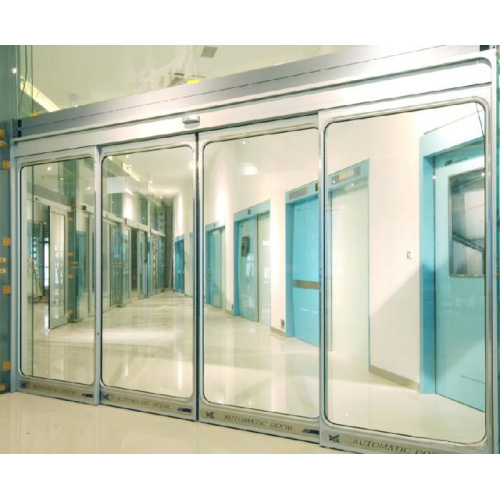

Automatic sliding glass door operator for door and frameless glass doors

(1) Motor:
The motor is brushless 24 VDC with built-in optical sensor for precise movement, quiet operation, maintenance free, high torque and high operating speed.
(2) Controller:
The intelligent controller unit can be programmed to connect to any safety/alarm system, self-monitor and calibrate, and store all data for door travel and brake position.
(3) Ups
The operator has built-in uninterruptible power (battery backup) operation and safety during a power failure.

(4) Belt drive
The drive is through a toothed belt that is reinforced by a fiberglass tensile member and has a nylon facing surface for protecting the teeth on the pulley. This combination produces a silent and accurate operation.
Tracking tracks are self-cleaning bilinear cues. The upper rail is made of a stronger, stronger alloy 6351T6 that can be replaced without moving the beam. The wheeled cart is equipped with an anti-lifting wheel to make the door very strong and operates without any shelves.
(5) Locking
Electromechanical locking: Provides an electronic locking option for complete safety and can be adjusted without manual locking, ie: E. Frameless tempered glass doors. The lock is a microprocessor controlled electric lock system. The microprocessor monitors all aspects of the lock function. EG When the lock is 100% engaged, make sure the door is completely closed. The terminal output can be used to signal the door position and lock status to the safety system. If the movement is blocked,
(6) Safety
The door operation will automatically reverse in either direction and the sensitivity setting will be programmable.

Why choose our products?

1) Security: When the door is running, the resistance will automatically start the reverse sliding function. The infrared electronic eye is used to detect the obstacle, and the door can automatically avoid it.

2) Low noise: Special fiber nylon guide rail - self-lubricating nylon weighing pulley structure, effectively reducing noise during operation

3) Convenience: Multiple functions allow you to select the normally open, automatic, pass and lock status according to your needs. It is convenient to set and adjust the opening speed, closing speed, keeping open time, etc.

4)Generalized: Suitable for office buildings, storefronts, banks, factories, restaurants, hotels, shopping centers, laboratories, hospitals, etc., to ensure the smooth flow of people walking and cargo transportation

The Door Latch:

The Accessories

If you are interested in our products, please kindly contact me.
