High resolution car rear view system products 4 channel car quad processor
-
USD46≥1 Piece/Pieces
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air, by express
- Port:
- Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China |
|---|---|
| Productivity: | 50000 pcs / month |
| Supply Ability: | 50000 pcs / month |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO 9001, CE, FCC, etc. |
| Transportation: | Ocean,Land,Air,by express |
| Port: | Shenzhen,Hongkong |

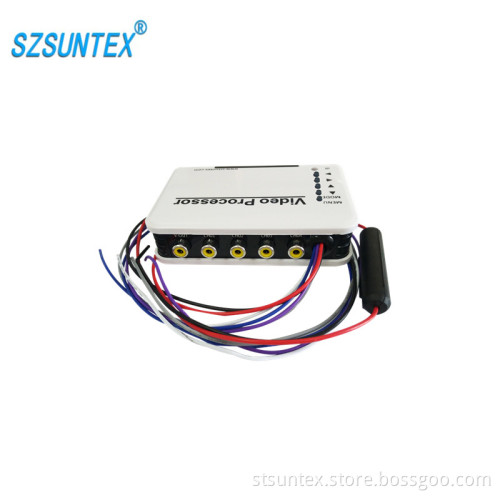

High resolution car rear view system products 4 channel car quad processor
Function
(1) Super wide voltage input, DC 9V-28V, ultra-low power consumption .
(2) Have power supply polarity reverse protection function that meets the international vehicle-mounted standard.
(3) High performance of shock-resistant .
(4) NTSC/PAL automatic identification function.
(5) Various Display Mode: Quad split mode, 3 split mode, dual split mode, full screen mode
Specification
|
Model Number |
ST400MA-XK |
|
Video Standard |
PAL 25f/s; NTSC 30f/s |
|
Resolution |
PAL 720×576; NTSC 720×480 |
|
Video Input |
4 CH Input, 1Vp-p , 75Ω |
|
Video Output |
1 CH Output, 1Vp-p, 75Ω |
|
Power Input |
DC 9-28V |
|
Power Consumption |
2W (DC12V/170mA) |
|
Working Temperature |
-30℃~80℃ |
|
Net Weight |
0.3kg |
|
Dimensions |
110mm (L) ×100mm (W) ×25mm (H) |
Wiring Instruction:
|
Red Cable ACC |
ignition key +12V power input |
|
Black Ground Line |
GND public ground line |
|
White Cable |
high beam +12V power input ,full screen of front view camera will be displayed by moving the high beam one time. |
|
Grey Cable |
back-up light +12V power input ,when you put the car into reverse, the rear view of the car will be showed. |
|
Blue Cable |
left turn signal +12V power input ,the left view will be displayed when you turn on your left signal |
|
Purple Cable |
right turn signal +12V power input ,the right view will be displayed when you turn on your right signal. |
Company Information
Shenzhen Suntex Development Technology Co., Ltd.
Shenzhen Suntex is a professional manufacturer, which focuses on researching, developing, producing and selling security monitoring products and vehicle monitoring products. Depends on strong R&D force, custom solutions can be provided. It is one of the national high-tech enterprises and Shenzhen high-tech enterprises.
Our company was established in 2004, and has its own factory which covers an area of 2000 square meters. At present, our main products include Color Quad Processor, Mobile DVR, Car Camera, Car Monitor, Car Rear View System, 360 Bird View Car Camera System, etc. All of our products comply with the ISO9001 quality assurance system strictly.
