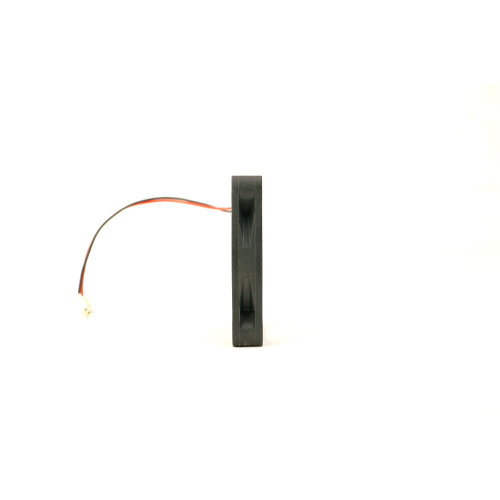

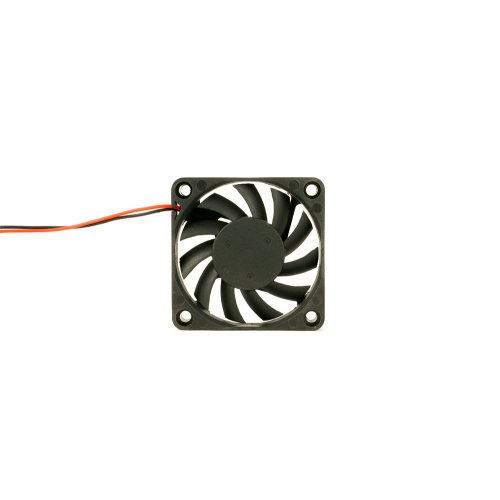

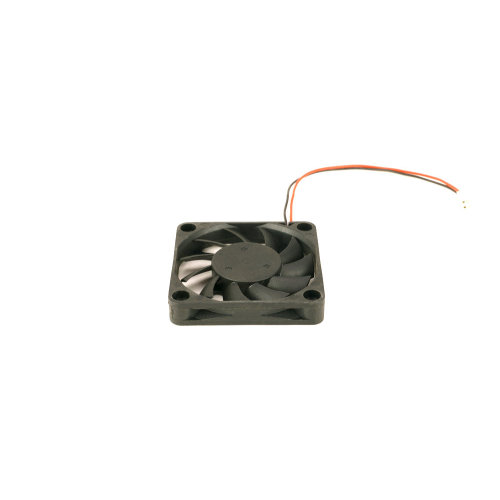

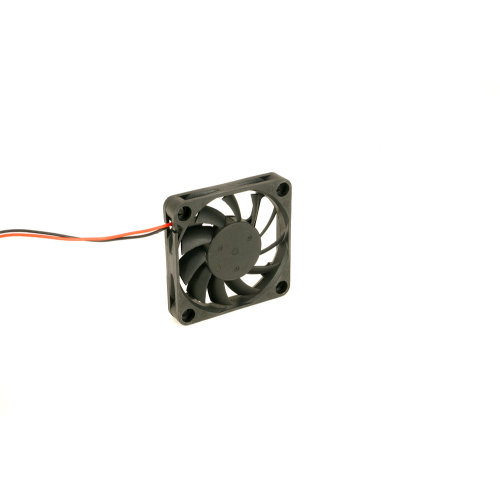

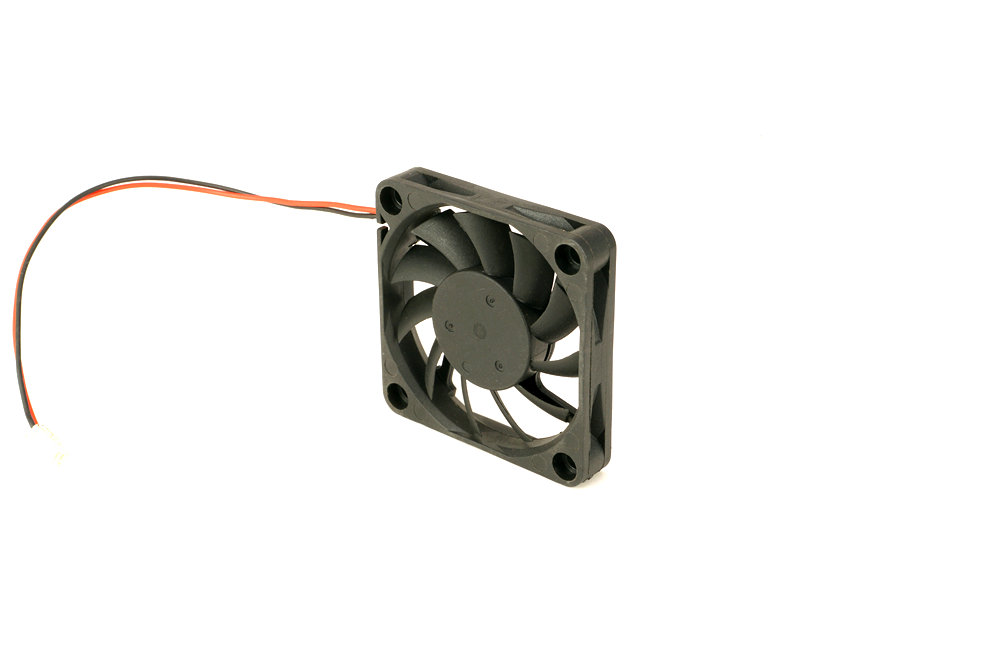

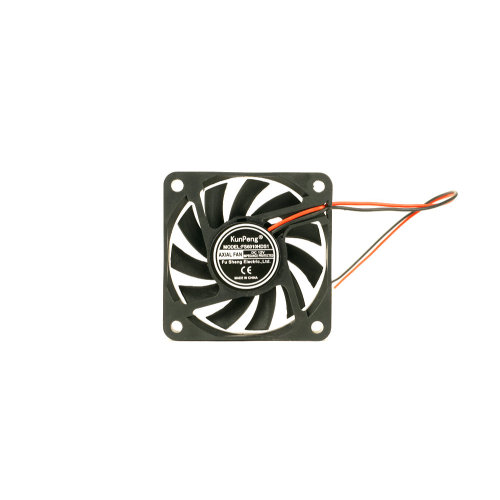

60x60x10mm Best DC Cooling Fan

Get Latest Price

Incoterm:: FOB

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	4000sets/month
Supply Ability:	4000sets/month
Incoterm:	FOB
Certificate:	ISO9001
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

Our company has 14 years of experience in manufacturing DC fan and AC fan.DC cooling fan produced by our company with advanced design, has the advantages of quick starting, large volume, long life, low noise, small vibration, fireproof, waterproof and other characteristics; bearing with high precision, long life and low noise imported ball bearing, corrosion resistance, high temperature resistance, low temperature resistance, stable operation; we have a strong design capability according to customer requirements, design and manufacture of special fan; we understand the specific needs of various industries on the wind turbine, can provide a variety of standard products for your choice; with excellent fan bearings, our silicon steel sheet, enameled wire, has higher reliability; we provide thoughtful and meticulous service, can also be according to customer drawings and samples production mold manufacturing and production, fast delivery.

Production description

Parameter:

Frame:Thermal Plastic,UL 94V-0

Impeller:Thermal Plastic,UL 94V-0

Lead Wire:AWG#26 UL1007(Optional)

(+):Red(-):Black

Insulation Resistance:

Above 10M Between Lead wire and Frame DC500V

Life Expectancy: Ball bearing:over 50000hr(At 25 degree)

Sleeve bearing:over 30000hr(At 25 degree)

Specification:

Model	Bearing	Rated voltage(v)	Rated current (A)	Rated Imput power(W)	Nominal speed (RPM)	Air flow (CFM)/(m^3/min)		Air pressure		Noise (dB)	Weight(g)
FS6010HDA5B(S)	sleeve/ball	5	0.35	1.65	4200	15.02	0.43	1.92	0.08	28.0	25
FS6010MDA5B(S)	sleeve/ball	5	0.20	1.10	3600	13.15	0.37	1.72	0.07	27.0
FS6010LDA5B(S)	sleeve/ball	5	0.17	0.85	3000	11.25	0.32	1.46	0.06	26.0
FS6010HDA12B(S)	sleeve/ball	12	0.22	2.64	4200	20.25	0.57	2.55	0.10	38.0
FS6010MDA12B(S)	sleeve/ball	12	0.17	2.04	3600	16.85	0.47	2.15	0.08	33.0
FS6010LDA12B(S)	sleeve/ball	12	0.14	1.68	3000	13.15	0.37	1.72	0.07	27.0
FS6010HDA24B(S)	sleeve/ball	24	0.11	2.64	4200	15.02	0.42	1.92	0.08	28.0
FS6010MDA24B(S)	sleeve/ball	24	0.09	2.16	3600	13.15	0.37	1.72	0.07	27.0
FS6010LDA24B(S)	sleeve/ball	24	0.07	1.68	3000	11.25	0.32	1.45	0.06	26.0

Certification

Our company has been ISO9001-2000 international quality

management system certification as the purpose,

now introduced to the environmental management system.

The products are certified by many countries and regions.

Such as: UL, CCC, TUV, CE and so on.

ABOUT US

Shenzhen Fu Sheng Electric Co.,LTD.is professional manufacturer of DC/AC/EC containing brush less axial compressor,cross current flow,centrifugal cooling fan,it is set up in October 2004 located in the beautiful scenery and developed economy,Shenzhen City,Guangdong Province.We have been working hard in the industry field and the enterprise has been a considerable scale.Because of the advantages of the business philosophy,has been a good product price and quality service to win the market,To win the trust of customers.Our products are widely used in IT field,Sports equipment,ventilation equipment,welding equipment, power systems,medical electronic equipment,machinery and equipment etc.

WHY CHOOSE US?

1.Product diversification, DC, AC, EC full series of brushless axial flow, cross flow, centrifugal fan.

2.14 years of production experience, to provide you with quality assurance.

3.Professional and technical personnel and advanced production equipment.

4.7x24 hours service online, welcome to consult, to provide you with high quality service.

5.Protection of your sales area,ideas of desigen and all your private information.

Packing and Shipment
