136-174MHz VHF Radio Modem
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 2 Set/Sets
- Min. Order:
- 2 Set/Sets
- Delivery Time:
- 9 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 sets / year |
| Supply Ability: | 20000 sets / year |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | SO9001 certification |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

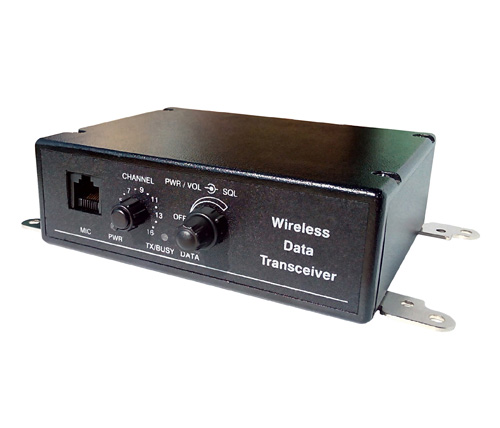

GDMV15 is a half-duplex VHF radio modem operating on 136 -174 MHz frequency band. Over-the-air data rates is 8kbps or 9.6kbps when channel spacing is 12.5KHz and 16kbps or 19.2kHz when channel spacing is 25KHz.
The advantage of the VHF frequency band is its wider coverage. The VHF radio modems are capable of communicating up to tens of kilometers, even over 100 kilometers. The data the radio modem communicates may be remote control signals, telemetry signals from a transducer, GPS positions, computer communications, or a host of other digital messages.
Specifications
1. General
(1) Operating frequency range: 136-174MHz
(2) Channel spacing: 12.5KHz or 25KHz.
(3) Number of channels: 60
(4) ANTENNA IMPEDANCE: 50 Ohm unbalanced
(5) OPERATING TEMPERATURE: -40 to +70℃
(6) FREQUENCY STABILITY TCXO: ±1.5ppm
(7)OPERATIONVOLTAGERANGE: 12V DC ( 11Vdc to 14.5V DC)
(8) STAND-BY CURRENT: 110mA
2. TRANSMITTER
(1) RF OUTPUT POWER: 1.5 W to 25W programmable
(2) OUTPUT 2ND HARMONIC: less than –65dB
(3) SPURIOUS EMISSIONS: less than 0.25uW (30MHz to 1GHz)
(4) MAXIMUM FREQUENCY DEVIATION: ±5KHz
(5) REFERENCE OSCILLATOR: TCXO
(6) RF IMPEDANCE: 50 Ohm unbalanced
(7) CURRENT DRAIN: 6.0A @25W output power
(8) FM HUM AND NOISE RATIO: greater than –50dB
(9) AUDIO FREQUENCY DISTORTION: 3% 1KHz for 3KHz deviation
(10) AUDIO FREQUENCY RANGE: 300Hz to 3400Hz ±2dB
(11) TRANSMITTER ATTACK TIME: less than 10ms
2. RECEIVER
(1) TYPE OF RECEIVER:Crystalcontrolled double, super heterodyne
(2) INTERMEDIATE frequency: 45MHz(1st IF), 455KHz(2nd IF)
(3) SENSITIVITY: Better than 0.2uV @12dB SINAD
(4) SQUELCH SENSITIVITY: 0.1uV to 1uV programmable
(5) ADJACENT CHANNEL SELECTIVITY: greater than –70dB
(6) SPURIOUS AND IMAGE REJECTION: greater than –65dB
(7) OUTPUT AUDIO DISTORTION: 3% at 1KHz for ±5KHz deviation
(8) FM HUM AND NOISE RATIO: greater than 40dB
3. Data and Interface
(1) MODULATION: GMSK
(2) AIR RATE: 8kbps or 9.6kbps programmable
(3) INTERFACE BAUD RATE: 8kbps to 9.6kbps programmable
(4) INTERFACE DATA BIT: 8 /7bit
(5) INTERFACE PARITY BIT: None / Even / Odd
(6) INTERFACE STOP BIT: 1bit
