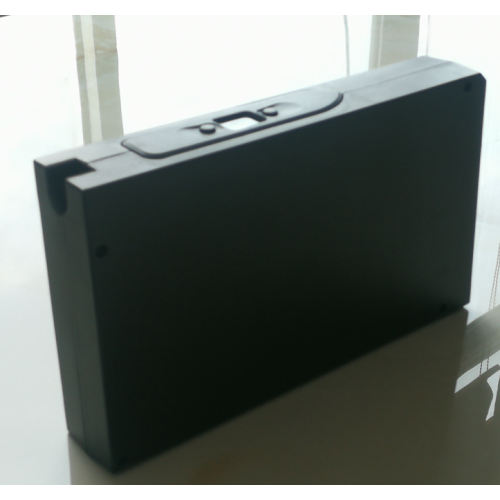

The AD601 11V 10 Ah (10 000mAh) Li Ion Battery Pack is made by 6 pcs high quality 26650 cells in 3S2P configuration. Max. discharge rate up to 10 A, Good for any 12 DC portable device application. Application: LED light, spot light, flashlight, portable DVD, speaker, power bank, clock, Medical device, industry equipment, traffic indicator light, cameras, DV, toys, GPS, cameras, interphone, alarm system, POS machine, communicate equipment, IC terminal, electric lock, wireless dishes ordering set
Battery Case ID: AD601-11V10AH
Cell inside: 6pcs li ion 26650 cell 3S2P
or 9pcs 18650cell or lipo cells
Input: 12.6V 8A Max
Output: 9V(end)~12.6V(peak) 10A max
Dimension: 33*104*176mm
Input/Ouput Terminal: 5.5*2.5,5.5*2.1,3.5*1.35mm
or designated connector in extension cable.
Weight: 563g
The AD601 battery is designed for heated clothing application but good for any 12V DC portable device as well.
The AC601 battery LED screen can be made to reflect the battery fuel level status by display number 0~9, 0=empty, 9=full.
The AD601 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.
The AD601 battery also could works as an POWER BANK, PORTABLE CHARGER for all USB gears, smart phones and iphones. With a 12.6v 5A/8A AC/DC charger the AD601 battery could recharge back almost full in about single one hour time, really saves a lot chargingtime compared with market's standard power bank which need 10-20 hours.
AD601 super fast recharging power bank for charging smart phone and all USB gears,
AD601 heated clothing battery pack for motorcycle heated clothing, heated jacket, heated wears,
AD601 heated blanket battery pack for 12v DC powered heated blanket, portable heated blanket.
The highest recharging rate on standard power bank is 9V*2A=18W
This AD601 gets 12.6v*5A=63W, 3 times more then those highest speed.
The normal recharging rate on standard power bank is merely 5V*1A=5W,
Wasting too much time waiting the power bank recharge back itself.
Battery operation instruction.
Pairing the remoter with battery.
We make li ion battery packs for all heated wears in all size option, search (model number) to find more information in our site.
AD601 11V 10AH super power bank battery for heated clothing, heated jacket, heated blanket, heated vest, heated coat and other heated wears.
