Heated Hunting Clothes Battery Pack 7v 10.2Ah (AC601)
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB |
| HS Code: | 85076000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen,Hongkong |

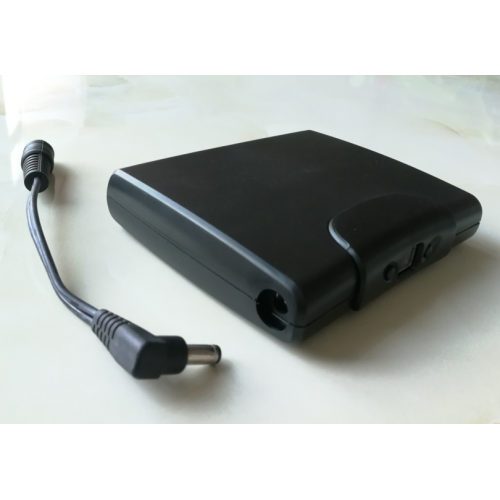

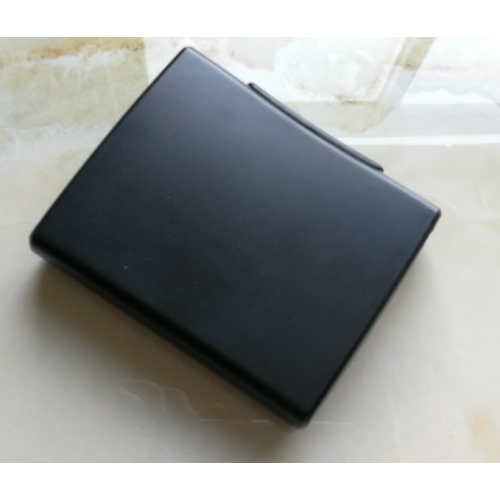

The AC601PC-7V10200 is 7.4v 10200mAh version of AC601 li ion rechargeable battery pack made of 6pcs Samsung 18650 battery, LG 18650 battery, Panasonic 18650 battery or other optional 18650 battery, The AC601PC battery is designed for motorcycle heated gears with adjustable output settings. Application: best women's heated jacket, battery heated motorcycle gloves, womens heated jackets, battery jacket, battery heated coat, battery operated heated jacket, heated winter coat and other 7v heated garments.
Battery ID: AC601PC-7V10200
Cell inside: 6pcs li ion 18650 battery
Dimension: 26*101*122mm
Capacity: 7.4v 10200mAh
Input: 8.4v 5A max
Output: 8.4v~6V 5A max, PWM the Pulse DC output adjustable. 5 level for non wireless version, or 3 setting for wireless control version.
USB Output: 5.1V 2A for charging all USB gears.
Input/Ouput Terminal: 5.5*2.5mm coax type, 5.5*2.1mm, 3.5*1.35mm,
or designated connector in extension cable.
Weight: 360g
Function Code: PC (CC version also available, constant DC output no output setting, use for 7v electronic device; or use with T21sicpu silicon pushbutton heat controller for heated clothing application.)
Typical cell inside:
The AC601 battery is designed for motorcycle heated gears application with larger size and bigger capacity. It is perfect for higher power drain heated clothing like those for motorcycle riders. It is also idea back up battery for light 7v/12V heated clothing when user stay in one place not in moving and need keep warming up.
The AC601 battery LED screen can be made to reflect the battery fuel level status by display number 0~9, 0=empty, 9=full.
The AC601 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both. Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.
The AC601 battery also could works as an POWER BANK, PORTABLE CHARGER for all USB gears, smart phones and iphones. With a 12.6v 5A/8A AC/DC charger the AC601 battery could recharge back almost full in about single one hour time, really saves a lot chargingtime compared with market's standard power bank which need 10-20 hours.
Typical Capacity Option:
11.1v 4400mAh/5200mAh/6400mAh/6800mAh
7.4v 6600mAh/7800mAh/9600mAh/10200mAh
The AC601 and AC603 heated motorcycle clothing battery pack.
8.4V li ion battery charger.
8.4v 5A, 8.4v 8A, 12.6V 5A, 12.6V 8A, 16.8v 5A, 16.8V 8A AC/DC lithium ion battery charger. CB/UL/CE/FCC certificated.
Pairing the remoter with battery.
The silicon button heat controller allow user operates the heating gears very easily.
Our T21sicpu silicon heat controller works for 7v/12/15v heating gears, it takes power from an external battery pack
or from motorcycle/vehicle battery, or even from an AC/DC power supply when user stay indoor.
Our T21sicpu silicon heat controller works for all our most batteries except those PC (Pulse output only) types.
Packaged in the same size box as the AC801 battery.
