Battery Powered Heated Gloves 7.4v 3400mAh (AC224)

The AC224DM-7V3400 is 7.4v 3400mAh version of AC224 li ion rechargeable battery pack made of Samsung/LG/Panasonic 3400mAh/3500mAh 18650 battery. It works for most 5v/7v heated clothing with or without the silicon pushbutton controller. Works well for clothing like ARRIS Electric Heated Vest Unisex 5 Volt Battery Powered Light Weight Warm Coat For Out Door Use. The 7V battery could provide much more warmth then 5V power bank does. Application: heater body suit, battery powered heater, battery heater,  dewalt heater, motorcycle heater.
Cell options:
Panasonic NCR18650B 3400mAh
Panasonic NCR18650GA 3500mAh
SAMSUNG INR18650-35E 3400mAh
LG INR18650F1L 3350mAh
LG INR18650MJ1 3500mAh

The AC401DM-7V3400 battery is a Dual Mode battery which has constant DC output and pulse DC output both.
In constant DC output mode it provide 8.4v~6v continues current works with 7v electronic devices, or works with our T21sicpu the silicon pushbutton heat controller for heating wear application, the silicon button heat controller allow user operates the heating gears very easily. Our T21sicpu silicon heat controller works for 7v/12/15v heating gears, it takes power from an external battery pack or from motorcycle/vehicle battery, or even from an AC/DC power supply when user stay indoor.
In PWM control mode the battery allow user to adjust the desirable output power rate. It comes with 4 settings(25%-50%-75%-99%) as standard version. We can make custom setting as request as well.
The battery has blue/red light both to tell which mode it is running on. Blue light for constant DC output mode (CC), Red light for pulse DC output mode(PC). User can shift from one mode to another by press power button for 10 seconds.

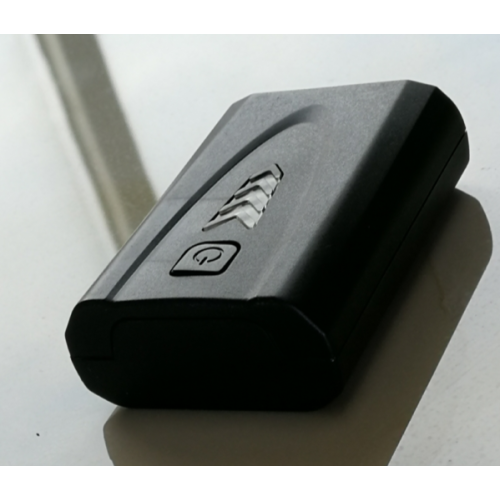

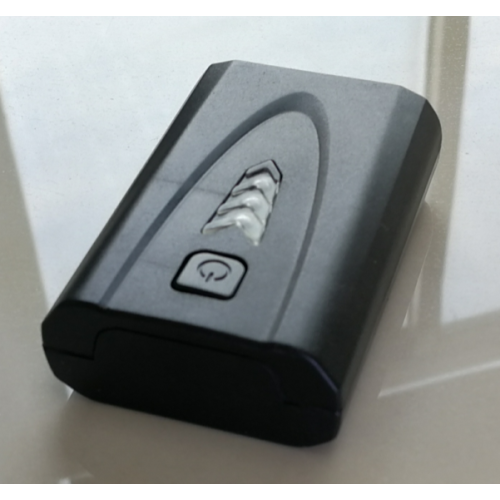

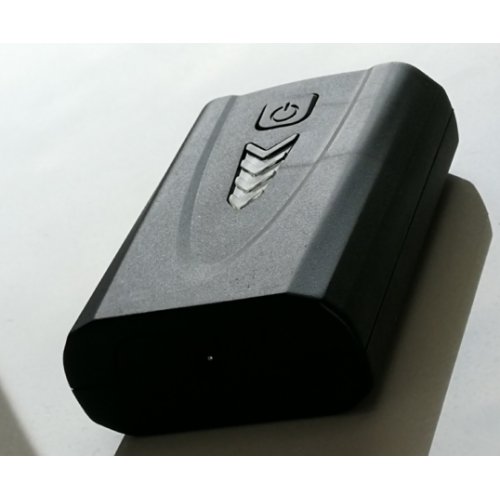

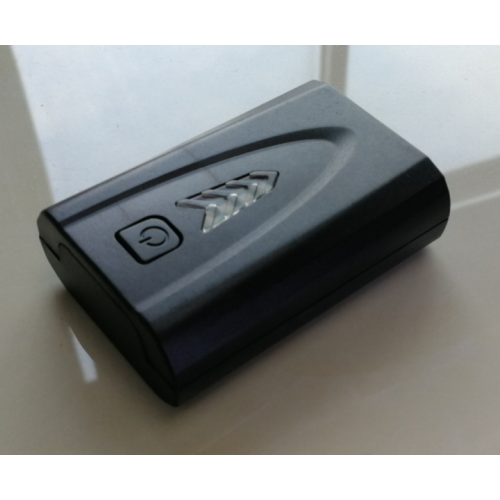

The AC224 battery is designed for electric heated wears application.  It has most compact size 22*48*70mm , with an ON/OFF tactile switch and 4 LED lights indicator, a 3.5*1.35mm coax type socket connector.
The AC224 battery LED lights can be made to reflect the battery fuel level status by lighting up different number of lights.
The AC224 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.
The AC224 battery is perfect for heated gloves, battery heated gloves, heated glove liners and other types of electric heated gloves.
Typical Capacity Option:
7.4v 2200mAh/2600mAh/3200mAh/3400mAh
3.7v 4400mAh/5200mAh/6400mAh/6800mAh

Battery ID: AC224DM-7V3400
Cell inside: 2pcs li ion 18650 battery
Dimension: 22*48*70mm
Capacity: 7.4v 3400mAh
Input:  8.4v 2.5A max
Output: 8.4v~6V 2.5A max, Constant DC or Pulse DC output both.
Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.
Weight: 113g
Function Code: DM (CC+PC)

The silicon button heat controller allow user operates the heating gears very easily.
Our T21sicpu silicon heat controller works for 7v/12/15v heating gears, it takes power from an external battery pack
or from motorcycle/vehicle battery, or even from an AC/DC power supply when user stay indoor.
Our T21sicpu silicon heat controller works for all our most batteries except those PC (Pulse output only) types.

We make li ion battery packs for all heated wears in all size option, search (model number) to find more information in our site.
