Battery Heated Gloves Battery 7.4v 3200mAh (AC224)

The AC224PC-7V3200 is 7.4v 3200mAh version of AC224 li ion rechargeable battery pack made of Samsung/LG/Panasonic 3200mAh 18650 battery. This small size battery great for small heated products like Duran's Neck Wrap with Carbon Fiber Heating Technology. The At-Home Heat Therapy Neck Wrap can help alleviate neck and upper back pain through the application of Far Infrared Rays (FIR), which penetrate up to 3 inches through muscle and bone for more efficient heat therapy. With our small battery the system is lightweight, nonpharmaceutical, and noninvasive. The battery could be used when you in walking while if you stay there you can use a personalized temperature controller.

The AC401PC-7V3200 battery is a PWM control battery which allow user to adjust the desirable output power rate. It comes with 4 settings(25%-50%-75%-99%) as standard version. We can make custom setting as request as well.

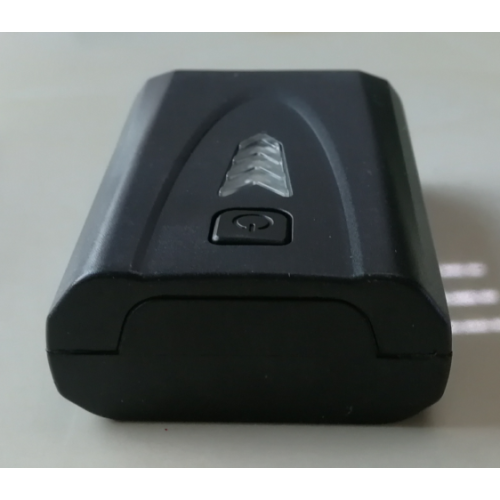

The AC224 battery is designed for electric heated wears application.  It has most compact size 22*48*70mm , with an ON/OFF tactile switch and 4 LED lights indicator, a 3.5*1.35mm coax type socket connector.

The AC224 battery LED lights can be made to reflect the battery fuel level status by lighting up different number of lights.

The AC224 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.

The AC224 battery is perfect for heated gloves, battery heated gloves, heated glove liners and other types of electric heated gloves.

Typical Capacity Option:
7.4v 2200mAh/2600mAh/3200mAh/3400mAh
3.7v 4400mAh/5200mAh/6400mAh/6800mAh

Battery ID: AC224PC-7V3200
Cell inside: 2pcs li ion 18650 battery
Dimension: 22*48*70mm
Capacity: 7.4v 3200mAh
Input:  8.4v 2.5A max
Output: 8.4v~6V 3A max, Pulse DC output with adjustable output levels, 4 settings or made per request.
Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.
Weight: 113g
Function Code: PC
Application: battery powered heated socks, best heated motorcycle gloves, battery operated heated gloves,
