Heated Jacket Battery 7.4V 2200mAh

The AC214PC-7V2200 is 7.4V 2200mAh version of AC214 battery by using DLG/HYB 2200mAh cell. real capacity 2100mAh~2400mAh. This heated jacket battery works for heated clothings like Ansai Mobile Warming Glasgow Heated Jacket which donot have a silicon pushbutton installed. The battery itself has the output settings, the built-in 4-level thermo-regulating controls. Ansai Glasgow Heated Jacket come with two panels on the chest and one on the back, This battery would run about 2hours in highest setting and more then 7hours at lowest setting.

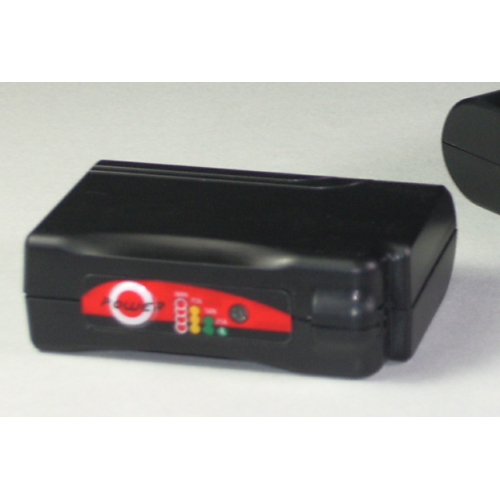

The AC214 battery is designed for electric heated vest, heated jacket, heated hand warmer, heated belt application.  It has small size 24*54*74mm, with an ON/OFF switch and a LED light indicator, a 3.5*1.35mm coax type socket connector.

The AC214 battery LED light can be made to reflect the battery fuel level status by different color.

The AC214 battery can be made to have different output mode: Constant DC type (8.4v~6v), Pulse DC type (adjustable pulse settings), or two both.

By adopting different cells the capacity can be 7.4v 2000mah/2200mah/2600mah/3000mah/3200mah/3400mah/3500mah, or 3.7v 4000mah/4400mah/5200mah/6000mah/6400mah/6800mah/7000mah

Battery Mode: AC214PC-7V2200
Cell inside: 2pcs li ion 18650 cell
Dimension: 24*54*72mm

Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.

Input: 8.4V 2A max

Output: 8.4V~6V 2A max
Weight: 119g
