Battery Heated Socks Power Bank 3.7v 2200mAh (AC103)

The AC103NS-3V2200 is 3.7v 2200mAh version of AC103 li ion rechargeable battery pack made of 1pcs HYB 18650 battery,  DLG 18650 battery or other optional 18650 battery.  Application: heated hunting boots, foot warmers for hunting, toe warmer socks, electric foot warmer slippers and other 3v heated wear products.

Battery ID: AC103-3V2200
Cell inside: 1pcs li ion 18650 battery
Dimension: 22*22*82mm
Capacity: 3.7v 2200mAh
Input:  4.2v 1.5A max
Output: 4.2v~3V 2A max, Constant DC. To get output setting, customer can use this battery with our T21sicpu the silicon pushbutton heat controller.

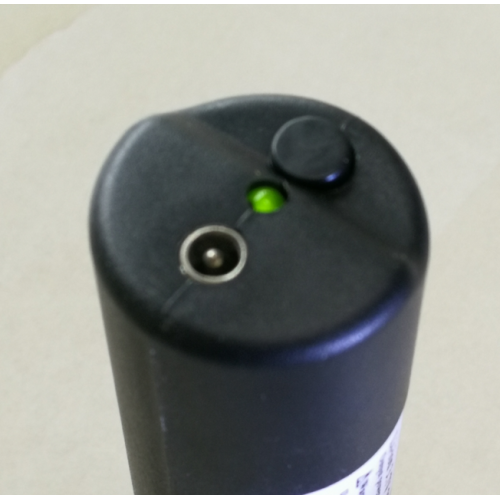

Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.
Weight: 60g
Function Code: NS

The AC103 battery is designed for light duty electric heated wears application.  It has most compact size  22*22*82mm , a 3.5*1.35mm coax type socket connector or other specified connector type by extension cable.

Typical Capacity Option:
3.7v 2200mAh/2600mAh/3200mAh/3400mAh

The AC103 battery has no output settings. To get output setting, can use with below T21sicpu silicon pushbutton heat controller.

The silicon button heat controller allow user operates the heating gears very easily.
Our T21sicpu silicon heat controller works for 7v/12/15v heating gears, it takes power from an external battery pack
or from motorcycle/vehicle battery, or even from an AC/DC power supply when user stay indoor.
Our T21sicpu silicon heat controller works for all our most batteries except those PC (Pulse output only) types.

Lithium ion rechargeable battery chargers, li ion chargers, battery chargers, rechargeable battery chargers.

Other similar battery optional.
