Battery Heated Gloves Battery 3.7v 5200mAh (AC224)

The AC224PC-3V5200 is 3.7v 5200mAh version of AC224 li ion rechargeable battery pack made of DLG/HYB/BAK/LS or Samsung/LG 2600mAh 18650 battery.
Cell options:
Sanyo UR18650FM 2500/2600mAh
Sanyo UR18650ZY 2450/2550mAh
Samsung ICR18650-26JM 2600mAh
Samsung ICR18650-26FM 2600mAh
Samsung ICR18650-26HM 2600mAh
Molicel ICR18650M 2800mAh
LG ICR18650B4/B4L 2600mAh
DLG N18650A 2600mAh
HYB ICR18650NQ 2600mAh
LISHEN LR18650SK 2600mAh
BAK C18650CC 2600mAh
BAK H18650CH 2600mAh

The AC401PC-3V5200 battery is a PWM control battery which allow user to adjust the desirable output power rate. It comes with 4 settings(25%-50%-75%-99%) as standard version. We can make custom setting as request as well.

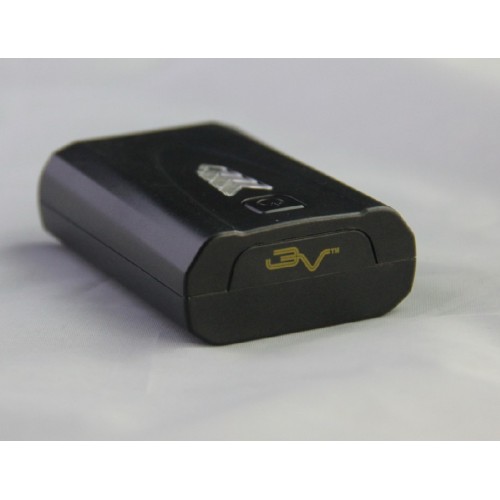

The AC224 battery is designed for electric heated wears application.  It has most compact size 22*48*70mm , with an ON/OFF tactile switch and 4 LED lights indicator, a 3.5*1.35mm coax type socket connector.

The AC224 battery LED lights can be made to reflect the battery fuel level status by lighting up different number of lights.

The AC224 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.

The AC224 battery is perfect for heated gloves, battery heated gloves, heated glove liners and other types of electric heated gloves.

Typical Capacity Option:
7.4v 2200mAh/2600mAh/3200mAh/3400mAh
3.7v 4400mAh/5200mAh/6400mAh/6800mAh

Battery ID: AC224PC-3V5200
Cell inside: 2pcs li ion 18650 battery

Dimension: 22*48*70mm

Capacity: 3.7v 5200mAh
Input:  4.2v 3A max
Output: 4.2v~3V 3A max, Pulse DC output with adjustable output levels, 4 settings or made per request.

Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.
Weight: 113g
Function Code: NS, CC, PC, DM

Application: heated gloves,  heated motorcycle gloves,  battery heated gloves, other types electric heated glove or electric heated gears.

We make li ion battery packs for all heated wears in all size option, search (model number) to find more information in our site.
