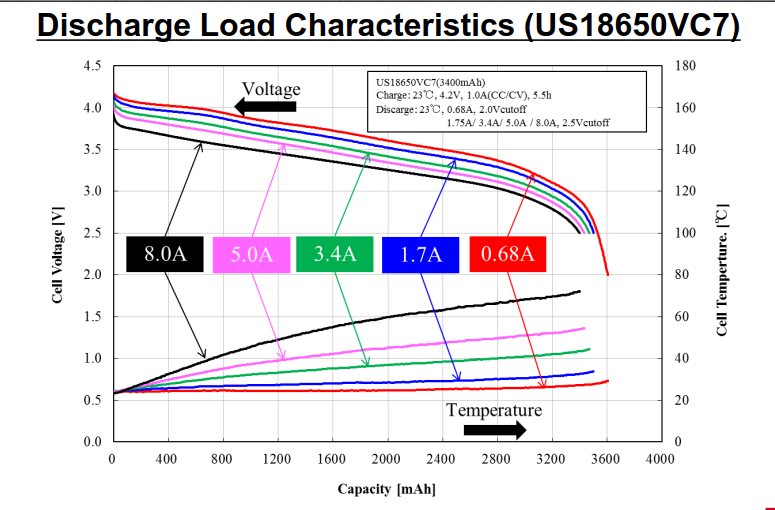

The Sony US18650VC7 cell is world's highest capacity 18650 battery cells with 3500mAh and 8A Max. continuous discharge current. Compared with Sony's VTC batteries, this VC7 battery provide only 8A max.continuous discharge current but much more capacity. It provides minum capacity 3400mAh 0.2A, 3230mAh 0.5A, 2720mAh at 5A and 2650mAh at 8A discharge current. And this is VC7,not VTC7, there is no VTC7 yeat, After VTC3, VTC4, VTC5, VTC6 Sony decided to assign new model name VC7, and not VTC7.
VC3 2250mAh, 10A discharge max
Sony US18650VTC3 18650 Battery VTC3 1600mAh 30A discharge
VTC4 2100mah 30A discharge
VTC5 2600mah 25A discharge
VTC6 3000mah 30A discharge
VTC5A 2600mah 35A discharge
VTC6A 3000mah 35A discharge
VC7 3500mAh 8A discharge max
Nominal Specifications
Nominal Capacity: 3500mAh
Nominal Voltage: 3.6V/3.7V
Full charge Voltage: 4.2V
Internal Impedance 23 mΩ measured by AC 1kHz
Diameter 18.45mm max +/- 0.05mm
Length 65mm max +/- 0.05mm
Weight: 47.1 g Average
Positive terminal: Flat top
Color: Green
Battery Type / shape: 18650 / Cylindrical
Made in Japan
Manufacturer: Sony Energy
Intended use: Power Battery packs
