Electric Coat Power Bank 15v 3200mAh (AC403)

AC403CC-15V3200 battery is 14.8v 3200mah version of AC403 rechargeable li ion battery pack. The AC403CC battery is constant DC output, not PWM Pulse DC output, not adjustable.  The NC/CC battery can work with our T21sicpu silicon heat controller to enable adjustable heat levels for heated clothing design.  Application products like: heated coats and jackets, electric warming shirt, heated boots womens, warming coat and other heated wears products.

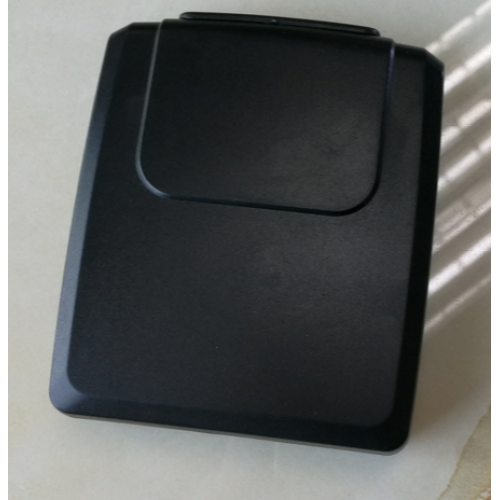

The AC403 battery is designed for electric heated wears application.  It's size is  24*81*95mm( 24*81*100mm for wireless version) , with an ON/OFF switch and a LED screen, a 3.5*1.35mm coax type socket connector.
The AC403 battery LED screen can be made to reflect the battery fuel level status by displaying number 0~9, 9=full, 0=need charge.
The AC403 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.
The AC403 battery has backwards DC port with aperture to hold the plug which make perfect stable connection, specially good for heated sports wears application.
By adopting different cells the capacity can be:
14.8V 2200mah/2600mah/3200mah/3400mah
7.4V 4400mah/5200mah/6400mah/6800mah
3.7v  8800mah/10400mah/12800mah/13600mah
*For 11v battery we have smaller size version AC301 in same function by 3x18650 design.

Battery ID: AC403CC-15V3200
Cell inside: 4pcs li ion 18650 cell
Capacity: 14.8V 3200mAh
Input: 16.8V 2.5A max
Output: 16.8V~12V 2.5A max, constant DC output, not adjustable. For adjustable heat level can use with T21sicpu silicon button heat controller which can sew onto garments/glove.
Dimension: 24*81*95mm
Input/Ouput Terminal: 3.5*1.35mm coax type
or designated connector in extension cable.
Weight: 225g
Function Code: PC

AC403CC-15V3200 battery is made of Samsung/LG/Panasonic 3200mAh 18650 battery.

Typical cell option:

PANASONIC NCR18650BD 3200mAh

PANASONIC NCR18650BM 3200mAh

The silicon button heat controller allow user operates the heating gears very easily.
Our T21sicpu silicon heat controller works for 7v/12/15v heating gears, it takes power from an external battery pack
or from motorcycle/vehicle battery, or even from an AC/DC power supply when user stay indoor.
Our T21sicpu silicon heat controller works for all our most batteries except those PC (Pulse output only) types.
