Gerbing Heated Gear Power Bank 11v 2600mAh (AC301)

AC301CC-11V2600 battery is 11.1v 2600mAh version of AC301 battery made of Samsung 18650 battery, LG 18650 battery and other optional 18650 battery.  The AC301CC battery is constant DC output, not PWM Pulse DC output, not adjustable.  The NC/CC battery can work with our T21sicpu silicon heat controller to enable adjustable heat levels for heated clothing design.  Application: electric sweater, electric heated coat, heated motorcycle jacket liner and other heated clothings.

Battery ID: AC301CC-11V2600
Cell inside: 3pcs li ion 18650 cell
Dimension: 25*79*85mm
Rating: 11.1V 2600mAh
Input: DC 12.6V 2.5A max
Output: 9V~12.6V 2.5A max, constant DC output, not adjustable. For adjustable heat level can use with T21sicpu silicon button heat controller
Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.
Weight: 170g
Function Code: CC

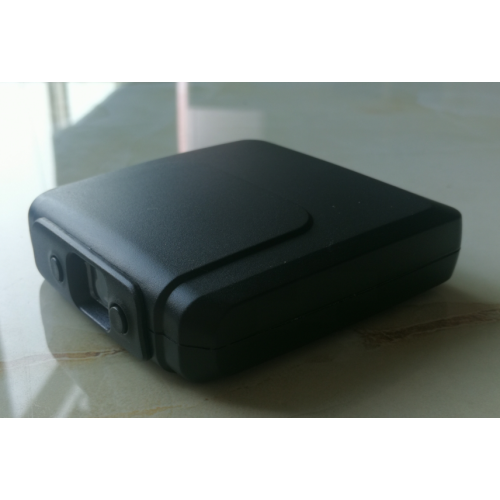

The AC301 battery LED screen can be made to reflect the battery fuel level status by displaying number 0~9, 9=full, 0=need charge.
The AC301 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.

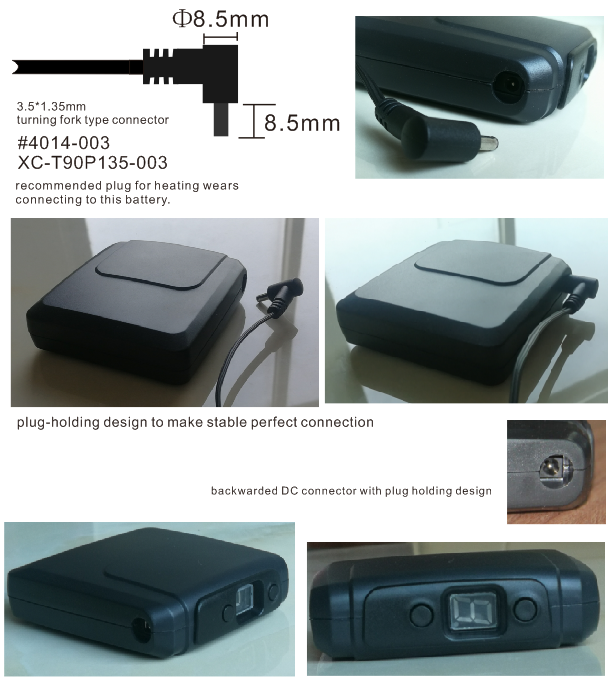

The AC301 battery has backwards DC port with hole to hold the plug which make perfect stable connection, specially good for heated sports wears application.
By adopting different cells the capacity can be:
11.1v 2200mAh/2600mAh/3200mAh/3400mAh
3.7v 6600mAh/7800mAh/9600mAh/10200mAh
*For 7v/15v battery we have bigger size version AC402/403/404 in same function by 6x18650 design.

The AC301CC-11V2600 is made of Samsung/LG 2600mAh 18650 battery.

Typical cell options:

Sanyo UR18650FM 2500/2600mAh

Sanyo UR18650ZY 2450/2550mAh

Samsung ICR18650-26FM

Samsung ICR18650-26H

Samsung ICR18650-26J (newest version to replace 26F and 26H),

LG ICR18650B4

The silicon button heat controller allow user operates the heating gears very easily.
Our T21sicpu silicon heat controller works for 7v/12/15v heating gears, it takes power from an external battery pack
or from motorcycle/vehicle battery, or even from an AC/DC power supply when user stay indoor.
Our T21sicpu silicon heat controller works for all our most batteries except those PC (Pulse output only) types.
