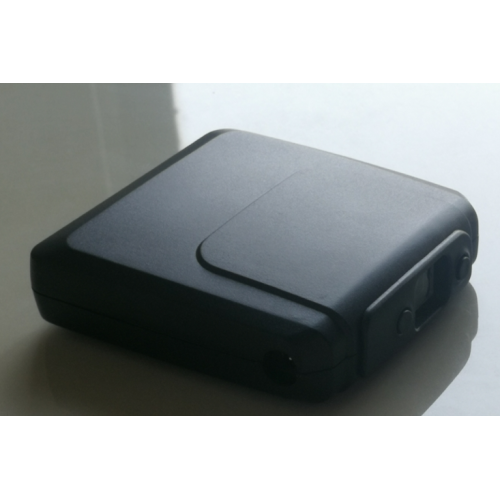

Heated Winter Jacket Power Bank 11v 3200mAh (AC301)

AC301PC-11V3200 battery is 11.1v 3200mAh version of AC301 battery with wireless adjustable output levels by PWM the Pulse DC output control technology, made of   Panasonic 18650 battery and other optional 18650 battery.  Application: heat wear, best heated vest, volt heated vest, ladies heated gloves and other heated clothings.

Battery ID: AC301PC-11V3200
Cell inside: 3pcs li ion 18650 cell
Dimension: 25*79*85mm
Rating: 11.1V 3200mAh
Input: DC 12.6V 2.5A max
Output: 9V~12.6V 2.5A max, PWM Pulse DC output with adjustable settings.
Output setting:
5 settings (non-wireless, 20%-40%-60%-80%-99%)
3 settings (wireless, 33%-66%-99%)
Other customer settings optional
Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.
Weight: 170g
Function Code: PC

The AC301 battery LED screen can be made to reflect the battery fuel level status by displaying number 0~9, 9=full, 0=need charge.
The AC301 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.
The AC301 battery has backwards DC port with hole to hold the plug which make perfect stable connection, specially good for heated sports wears application.
By adopting different cells the capacity can be:
11.1v 2200mAh/2600mAh/3200mAh/3400mAh
3.7v 6600mAh/7800mAh/9600mAh/10200mAh
*For 7v/15v battery we have bigger size version AC402/403/404 in same function by 6x18650 design.

The AC301PC-11V3200 is made of Samsung/LG/Panasonic 3200mAh 18650 battery.

Typical cell options:

PANASONIC NCR18650BD 3200mAh

PANASONIC NCR18650BM 3200mAh
