ABS box dwdm mux demux Single fiber 8channel DWDM module fc connector factory wholesale

Get Latest Price

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

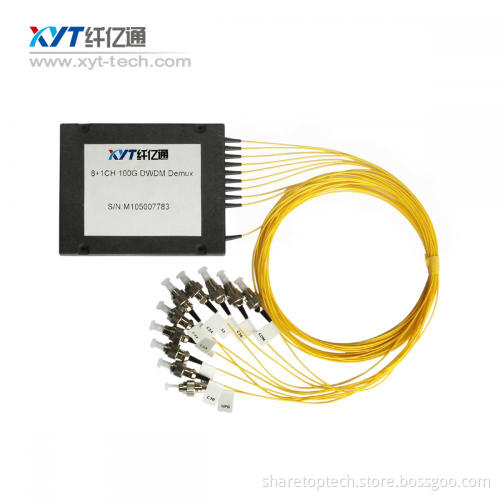

8channel DWDM module single fiber

Description

DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux)modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Fixed Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.

Features

Low Insertion Loss

High Isolation

Low PDL

Compact Design

Applications

DWDM System

PON Networks

CATV Links

Fiber optical amplifier

Wavelength routing

Specifications

Item	Unit	Parameters
Channel Spacing	GHz	100GHZ
Wavelength Range		C- band ITU channels
Channel Centers	nm	ITU
Channels	ch	4	8	16
Passbandwidth	nm	≥ +/- 0.13
Passband Ripple	dB	≤ 0.5
Channel Insertion Loss	dB	≤1.5	≤2.5	≤4.8
Channel EXP Insertion Loss	dB	≤1.8	≤2.8	≤5.0
Isolation (adjacent channel)	dB	≥30
Isolation (non-adjacent channel)	dB	≥ 40
Polarization Dependent Loss	dB	≤ 0.2
Polarization Mode Dispersion	ps	≤ 0.2
Directivity	dB	≥ 50
Return Loss	dB	≥ 45
Optical Power Handling	mW	≤ 500
Operating Temperature Range	0C	-5 to 70
Storage Temperature Range	0C	-40 to +85
Fiber Type	NA	SMF-28e+
