Bill Acceptor Flocked Cleaning Cards 85x185mm
Your message must be between 20 to 2000 characters
Contact NowBill Acceptor Flocked Cleaning Cards 85x185mm
Characteristics
Bill acceptor flocked cleaning card is flocked with large amount of micro fibers, there are 3 main sizes available, can compatible with most of currency size. Simply run the bill validator cleaning card through the machine like running a note. You can repeat the cleaning process for a few times for complete cleaning. Alcohol free solution is also available as an option. Most of the bill acceptor failure is caused by dirt or residue built up on the machine path way, so regularly use a bill validator cleaning card is very import, it can save you time and maintenance cost.
Features & Benefits
l Economical Costs to maintain your Bill Validator in Routine Maintenance to prevent misread or reading failure.
l Less machine failures due to effective dirt removal.
l Easy handling
l Isopropyl Alcohol Cleaner will safely clean , remove dust, dirty stain, and leave no Residue on the surface.
Applications
For all machine systems with Bank Note Acceptors or Validators, simultaneously cleans drive rollers, belts and reference surfaces.
The Diamond Flocked Cards are available in various widths depending on types of currency.
Technical Specification
Substrate material is PVC, ISO coded, flocked on either side, Pre-saturated with Alcohol Free Cleaner and pouch in Polyester Laminated Aluminium Foil to provide Excellent Moisture Vapor Barrier Bag properties.
1. Card Material : Flocked Fibers/Plastic Core/Flocked Fibers
2. Nominal Card Dimensions: 85 x 185 x 0.40 mm
3. Card Dimension Tolerance Range :
3.35" X 7.28" ( +/- 0.003 ) , 0.014" (in Inches) ThicknessTolerance Negative -ve 0.005866"
85.024 X 184.912 ( +/- 0.0762 ) , 0.3556 (in mm) ThicknessTolerance Negative -ve 0.149mm
Above Dimension is Compressed Thickness Tolerance.
4. Corner Radius : 4 Sides.
5. Paper Pouch Size ( W x L ) : 114 x 210 (in mm)
6. Solution Content : Alcohol Cleaner
7. Solution Volume : 1.0 +/- 0.25 ml
Figure 1 Picture illustrate the Microfiber Flocked Fibers Cleaning Process
The excellent dirt collection of the flock prevents simple distribution
of the dirt on the inside of the Bill Validators. The particles are collected by the fibres and removed when taking out the card.
Double-sided Diamond Flocked Pre-saturated with IPA Cleaner.
Packing : 25 Cleaning Card Per Box
Nominal Size : 85 x 185 x 0.40 mm

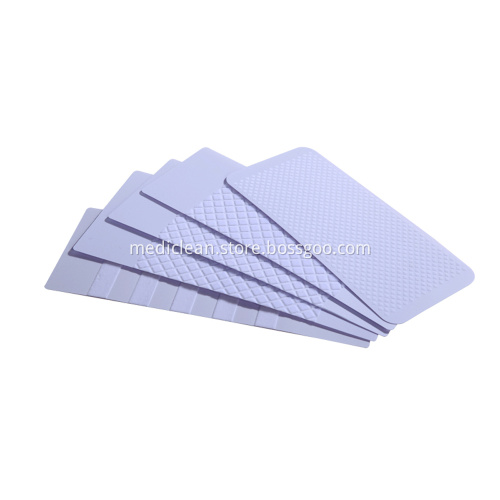

Picture :
