Magicard Card Printer Cleaning Kits M9005-771

Magicard Card Printer Cleaning Kits M9005-771 Presaturated Long T Cleaning Cards Rio Cleaning Rollers

Characteristics

Cleaning Pen can be only used for cleaning the thermal printhead, it is a cost effective and convenient product to maintain your printhead, simply open the pen cap, and slightly scratch the print head using the pen tip back and forth, then scratch the tip on a white paper so you can reuse the cleaning pen without residue.

Rio Cleaning roller is constructed from plastic core  adhesive tape, you need to replace new roller each time you replace the ribbon.

Magicard Long T-Cleaning Cards 270mm is used for deep cleaning the print path of Avalon, Rio & Tango Printers, it is constructed from PVC card and polyester cellulose material, laminated by thermal heat leave no adhesive contamination. The cleaning card is presaturated with IPA solution using filling machine to ensure proper and consistent IPA content.

Technical Specification

Magicard Long T-Card specification:

Card Material :      Spunlace/Plastic Core/Spunlace

Card dimensions :   54 x 270 x 0.96 mm

Card Dimension :    2.125 X 10.630 X 0.028  (in Inches) Thickness Tolerance +/- 0.002"

53.975 X 270.000 X 0.711 (in mm) Thickness Tolerance +/- 0.051mm

Pouch Size:         90 x 320mm

Corner Radius :     4 Sides.

Solution Content :    99.9% IPA

Magicard Cleaning Pen specification:

Barrel Length : 143mm

Barrel Diameter : 14.3mm

Packing : 12 Pieces/Box

Solution Content : 99.9% IPA

IPA Volume : 5.0 +/- 0.5 ml

Magicard Rio Cleaning Roller specification:

Roller Material : Plastic Core

Double Coated Tape : 50 um

Release Liner Thickness : 100 um

High Tack Adhesion : 5.5N/10mm

Temperature Operating Range : -30°to 204°C

Applications

Magicard CK-M9005-771 Cleaning Kit is used on below Magicard series:

Avalon, Rio & Tango Printers

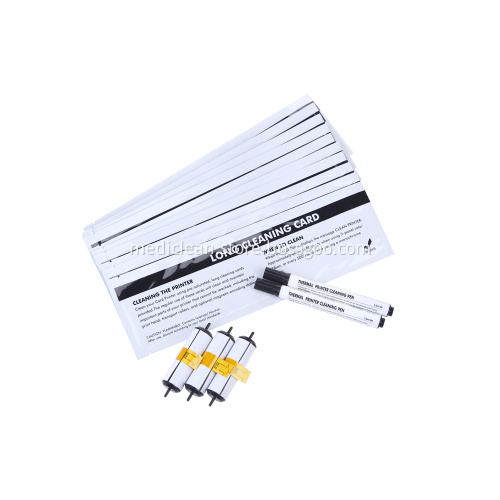

Product: 10 Long T-Cards - 270mm L,2 Cleaning Pens,3 Rio Cleaning Rollers

Part Number : CK-M9005-771
