Fargo Compatible Cleaning Kits 89200 Cleaning Pads

Fargo Compatible Cleaning Kits 89200 Cleaning Pads Long Cleaning Cards

Characteristics

Fargo long cleaning card feature long I shape, the length is 293mm, presaturated with IPA and packed in foil aluminum bag. Fargo long cleaning card is the best option to deep clean your Fargo card printer to remove the ink, dust and residue on the rollers, regularly maintain your card printer can keep your printer working at the best working condition.

Fargo printhead snap swab is filled with 99.9% IPA solution, simply snap the plastic handle before cleaning, the IPA will fulfill the foam head, then you are ready to clean. The difference between snap swab and presaturated swab is that presaturated swab handle provide a firm support during cleaning process, while snap swab not, and snap swab is more difficult for shipment due to more concentrate IPA while presaturated swab will not face shipping problem.

We use 3M adhesive tape for the adhesive cleaning cards, it features proper stickiness, will not jam the card printer while cleaning. Fargo Sticky Cards can effectively remove dust and particle from card printer transport rollers, after finish the cleaning process, throw the adhesive card away.

IPA Presaturated Cleaning Wipes are constructed from 100% of cellulose, pre-saturated with 99.9% Electronic Grade IPA Solution used in the Preventive Maintenance of Card Printers and Transaction Devices to clean the Thermal Print Heads, Platen Rollers, and Interior Components of the Device.

Technical Specification

Fargo Adhesive Cleaning Card specification:

Card Material : PVC Plastic Core

Double Coated Tape : 50 um

Release Liner Thickness : 100 um

High Tack Adhesion : 5.5N/10mm

Temperature Operating Range : -30°to 204°C

Corner Radius : 4 Sides

Fargo Presaturated Cleaning Wipes specification:

Wipe Material : 100% Polyester Spunlace Material

Size Dimension :4.5" x 4.5" (in Inches) Thickness Tolerance +/- 0.1"

125 x 125 (in mm) Thickness Tolerance +/- 2.54 mm

Packing Pouch Size (mm) : 63 x 88

Solution Content : 99.9% IPA

IPA Volume : 1.0 +/- 0.5 ml

Fargo Long T-Card specification:

Card Material :      Spunlace/Plastic Core/Spunlace

Card dimensions :   54 x 293 x 0.96 mm

Card Dimension :    2.125 X 11.535 X 0.028  (in Inches) Thickness Tolerance +/- 0.002"

53.975 X 293.000 X 0.711 (in mm) Thickness Tolerance +/- 0.051mm

Corner Radius :     4 Sides.

Paper Pouch Size :  90 X 320 (in mm)

Solution Content :   99.9% IPA

Applications

Fargo Card Printer Cleaning Kits is used on below Fargo series: HDP5000

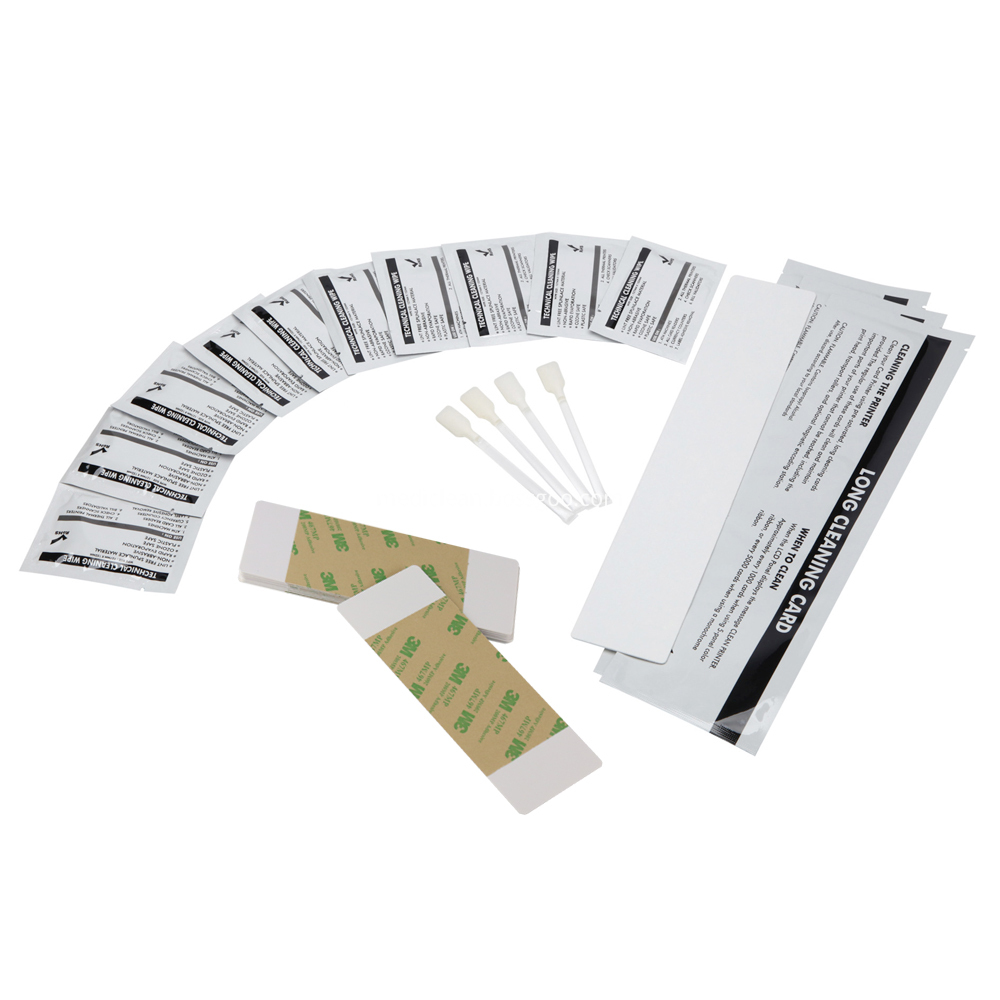

Product: 4 printhead cleaning swabs,10 cleaning pads,10 Adhesive Cleaning Cards,3 Long Cleaning cards

Part Number : CK-89200

Picture:
