Bill Validator Flocked Cleaning Cards 85x185mm
Your message must be between 20 to 2000 characters
Contact Now

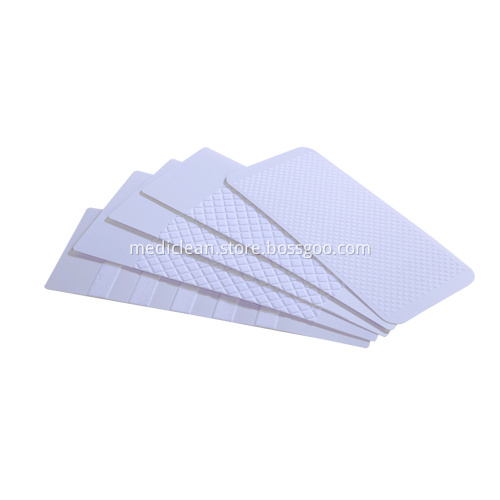

Bill Validator Flocked Cleaning Card 85x185mm
Characteristics
Bill acceptor flocked cleaning card 85x185mm is compatible with EU currency size, 65mm and 73mm width is also available. Flocked cleaning card is a best option for bill acceptor maintenance due to excellent dirt collection of the flocked micro fibers. It can be presaturated with IPA or alcohol free cleaning solution depends on customer requirement. Regularly use a flocked cleaning card to maintain your bill validator can reduce optical reading failure and keep machine clean.
Features & Benefits
l Economical Costs to maintain your Bill Validator in Routine Maintenance to prevent misread or reading failure.
l Less machine failures due to effective dirt removal.
l Easy handling
l Isopropyl Alcohol Cleaner will safely clean , remove dust, dirty stain, and leave no Residue on the surface.
Applications
For all machine systems with Bank Note Acceptors or Validators, simultaneously cleans drive rollers, belts and reference surfaces.
The Diamond Flocked Cards are available in various widths depending on types of currency.
Technical Specification
Substrate material is PVC, ISO coded, flocked on either side, Pre-saturated with Alcohol Free Cleaner and pouch in Polyester Laminated Aluminium Foil to provide Excellent Moisture Vapor Barrier Bag properties.
1. Card Material : Flocked Fibers/Plastic Core/Flocked Fibers
2. Nominal Card Dimensions: 85 x 185 x 0.40 mm
3. Card Dimension Tolerance Range :
3.35" X 7.28" ( +/- 0.003 ) , 0.014" (in Inches) ThicknessTolerance Negative -ve 0.005866"
85.024 X 184.912 ( +/- 0.0762 ) , 0.3556 (in mm) ThicknessTolerance Negative -ve 0.149mm
Above Dimension is Compressed Thickness Tolerance.
4. Corner Radius : 4 Sides.
5. Paper Pouch Size ( W x L ) : 114 x 210 (in mm)
6. Solution Content : Alcohol Cleaner
7. Solution Volume : 1.0 +/- 0.25 ml
Figure 1 Picture illustrate the Microfiber Flocked Fibers Cleaning Process
The excellent dirt collection of the flock prevents simple distribution
of the dirt on the inside of the Bill Validators. The particles are collected by the fibres and removed when taking out the card.
Double-sided Diamond Flocked Pre-saturated with IPA Cleaner.
Packing : 25 Cleaning Card Per Box
Nominal Size : 85 x 185 x 0.40 mm
Part Number : BVCC-85185FD
