Datacard Compatible 564729-166 Cleaning Kit

Datacard Compatible 564729-166 Cleaning Kit Magnetic Head Adhesive Cleaning Cards

Applications

Datacard Card Printer Cleaning Kits 564729-166 is compatible with below printers:

SR200, SR300, RL90, LM200, LM300, RP90, RP90 Plus

Features & Benefits

Routine cleaning with Datacard 564729-166 Magnetic Head Cleaning Cards will help ensure optimal prints and increase lifespan of your Datacard ID card printer magnetic stripe encoding.

Datacard 564729-166 Magnetic Head adhesive cards can remove dust and tiny particle from your printer transport rollers and adhesive rollers to ensure high quality of printing effect and prolong the lifespan of adhesive roller. Simply run the adhesive cleaning cards through your printer to clean the rollers. Please note adhesive cleaning card can only remove dust and tiny particle, please use a IPA presaturated CR80 cleaning card to remove ink, residue, and debris from the rollers, and use a cleaning pen to clean the print head.

Characteristics

High and Low Tack Double Coated Tape

A film tape coated on one side with a high tack ( permanent ) pressure sensitive adhesive and on the other side with a low tack ( removable ) pressure sensitive adhesive.

Double Coated Tape, with high tack permanently tape onto the surface of PVC Card and low tack surface is protected by Silicone treated paper release liner.

Technical Specification

Datacard Adhesive Cleaning Card utilized High / Low Tack Double Coated Polyester Film pressure sensitive tape as carrier to permanently stick onto the surface of PVC Core Substrate.

1. Card Material : PVC Plastic Core

2. Double Coated Tape : 50 um

3. Release Liner Thickness : 100 um

4. High Tack Adhesion : 5.5N/10mm

5. Temperature Operating Range : -30°to 204°C

6. Corner Radius : 4 Sides

7. Good UV Light Resistance

Part Number : ACC-D

Product: 10 Magnetic Head Adhesive Cleaning Cards

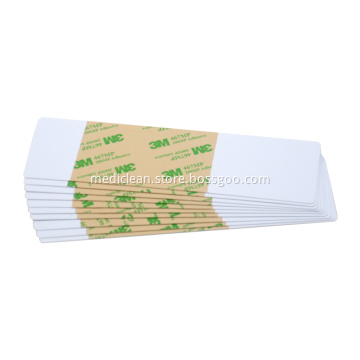

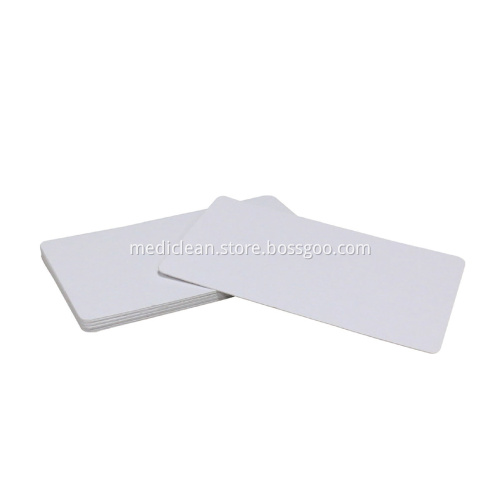

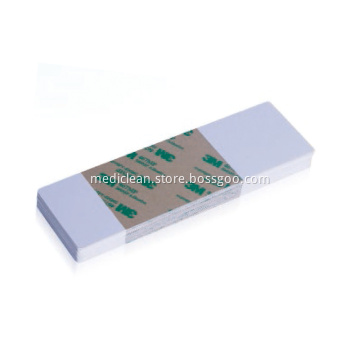

Picture:
