Datacard Compatible 549716-001 Cleaning Kit

Datacard Compatible 549716-001 Cleaning Kit Adhesive Cleaning Rollers

Applications

Datacard Card Printer Cleaning Kits 549716-001 is used on below printers: Select Platinum, Select AIT, Magna AIT, Magna Platinum

Features & Benefits

Datacard 549716-001 compatible Adhesive Sleeves clean dust and other tiny particles from ID cards before they're printed to ensure the print quality and help avoid damage to the printhead.

Characteristics

High and Low Tack Double Coated Tape

A film tape coated on one side with a high tack ( permanent ) pressure sensitive adhesive and on the other side with a low tack ( removable ) pressure sensitive adhesive.

Double Coated Tape, with high tack permanently tape onto the surface of roller core and low tack surface is protected by Silicone treated paper release liner.

Technical Specification

Datacard Adhesive Cleaning Cards utilized High / Low Tack Double Coated Polyester Film pressure sensitive tape as carrier to permanently stick onto the surface of Roller Core Substrate.

1. Roller Material : Plastic Core

2. Double Coated Tape : 50 um

3. Release Liner Thickness : 100 um

4. High Tack Adhesion : 5.5N/10mm

5. Temperature Operating Range : -30°to 204°C

6. Good UV Light Resistance

Part Number : ACR-DW

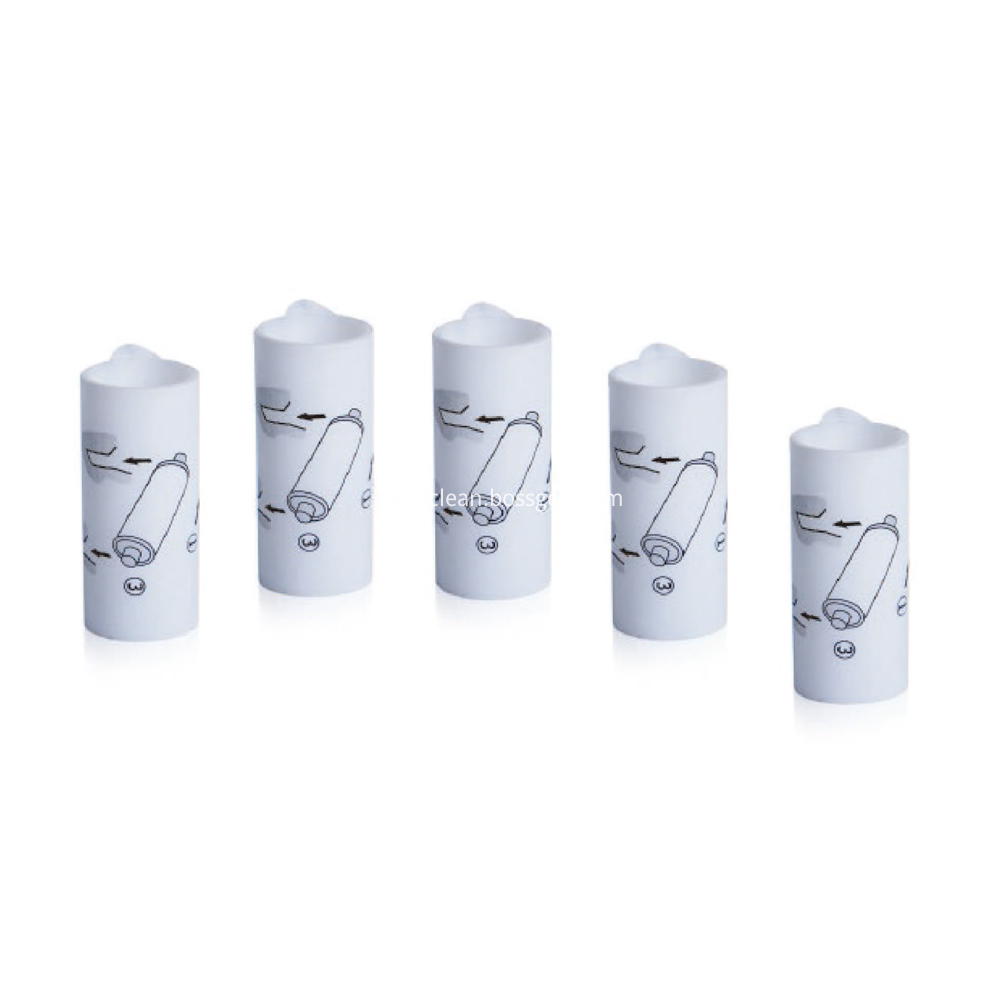

Product: 5 Adhesive Cleaning Sleeves

Picture:
