Datacard Compatible 557297-001 Cleaning Kit

Datacard Compatible 557297-001 Cleaning Kit Adhesive Cleaning Cards

Applications

Datacard Card Printer Cleaning Kits 557297-001 is used on below printers:

Select Platinum, Select AIT, Magna Platinum, Magna AIT, ImageCard Select, ImageCard Magna, ImageCard Express

Features & Benefits

Datacard 557297-001 compatible adhesive cards feature a low-tack adhesive paper that cleans dust and other particle from your printer transport rollers and adhesive rollers to help avoid damage to your printhead and help ensure high quality of printing effect. Simply run the adhesive cleaning cards through your printer to clean the rollers. Please note adhesive cleaning card can only remove dust and tiny particle, you need a IPA presaturated cleaning card to clean ink, residue, and debris.

Characteristics

High and Low Tack Double Coated Tape

A film tape coated on one side with a high tack ( permanent ) pressure sensitive adhesive and on the other side with a low tack ( removable ) pressure sensitive adhesive.

Double Coated Tape, with high tack permanently tape onto the surface of PVC Card and low tack surface is protected by Silicone treated paper release liner.

Technical Specification

Datacard Cleaning Supplies Adhesive Cleaning Card utilized High / Low Tack Double Coated Polyester Film pressure sensitive tape as carrier to permanently stick onto the surface of PVC Core Substrate.

1. Card Material : PVC Plastic Core

2. Double Coated Tape : 50 um

3. Release Liner Thickness : 100 um

4. High Tack Adhesion : 5.5N/10mm

5. Temperature Operating Range : -30°to 204°C

6. Corner Radius : 4 Sides

7. Good UV Light Resistance

Part Number : ACC-D

Product: 10 Adhesive Cleaning Cards, Single Side

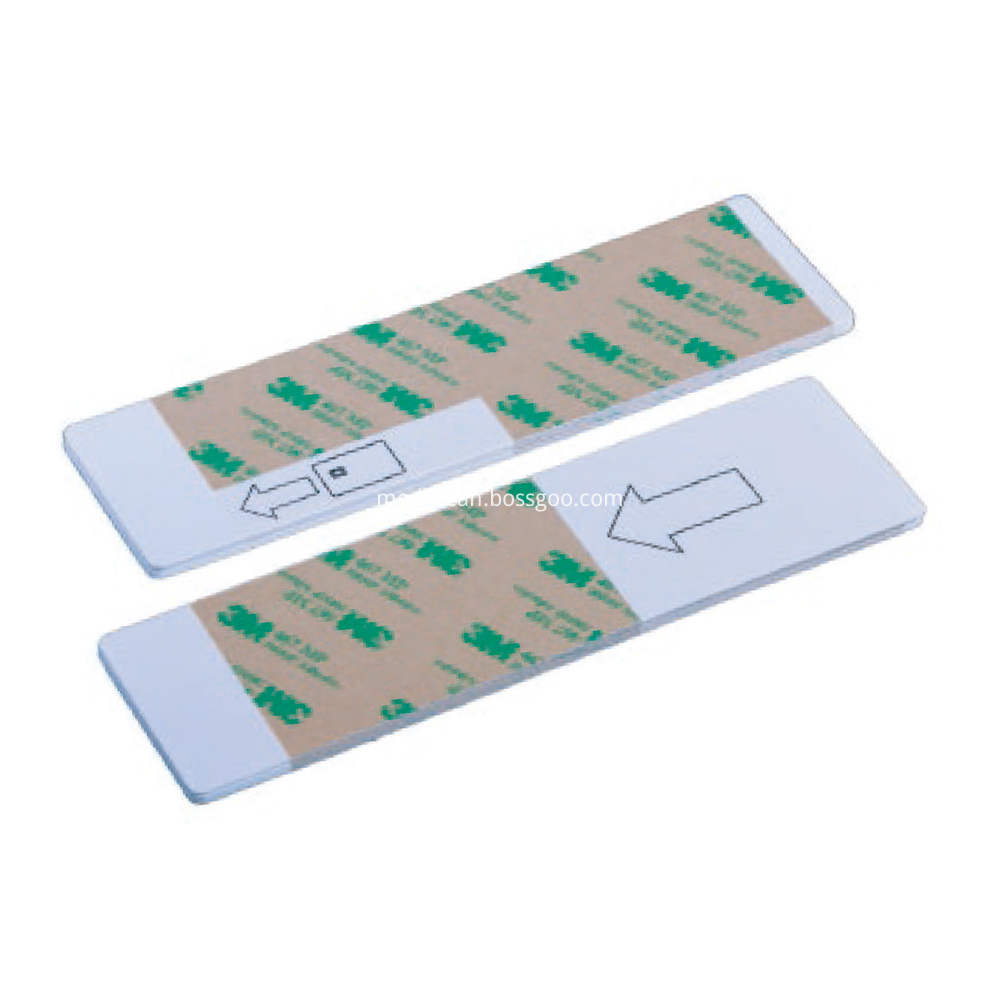

Picture:
