Adhesive Cleaning Cards 54x140mm Fargo Printers

Adhesive Sticky Cleaning Cards 54x140mm for Fargo Card Printers

Part Number : ACC-54140

Applications

It is compatible with Fargo Cleaning Kits 85976, 81593, 89200.

Adhesive Sticky Cleaning Cards 54x140mm is used on below Fargo series:

M30, M30e, C30, C30e, C50, DTC300, DTC400, DTC400e, DTC1000, DTC1000M, DTC1000Me, DTC1250e, DTC1500, DTC4000, DTC4250e, DTC4500, DTC4500e

Characteristics

We use 3M adhesive tape for the Adhesive Cleaning Cards, it features proper stickiness, will not jam the card printer while cleaning. Fargo Sticky Cards can effectively remove dust and particle from card printer transport rollers, after finish the cleaning process, throw the adhesive card away.

Technical Specification

Fargo Adhesive Cleaning Card specification:

Card Material : PVC Plastic Core

Card dimensions :   54 x 140 x 0.96 mm

Card Dimension :    2.125 X 5.512 X 0.028  (in Inches) Thickness Tolerance +/- 0.002"

53.975 X 140.000 X 0.711  (in mm) Thickness Tolerance +/- 0.051mm

Double Coated Tape : 50 um

Release Liner Thickness : 100 um

High Tack Adhesion : 5.5N/10mm

Temperature Operating Range : -30°to 204°C

Corner Radius : 4 Sides

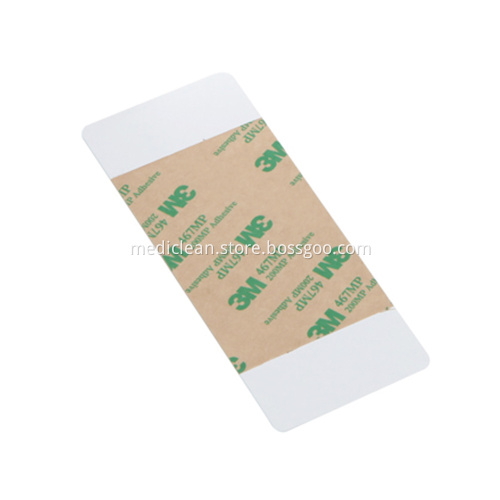

Picture:
