SMT Stencil Printer Solder Paste Screen Printer for PCB Screen Printing Machine

Product Application

 Feature:

1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.

2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.

3.Block can be adjusted before and after the blade, to choose the right printing position.

4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.

5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.

6.Can be set to one-way and two-way, a variety of printing methods.

7.With the automatic counting function to facilitate the production of output statistics.

8.Adjustable blade angle, steel blade, rubber scraper are suitable.

9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.

10.Printing speed display, can be adjusted.

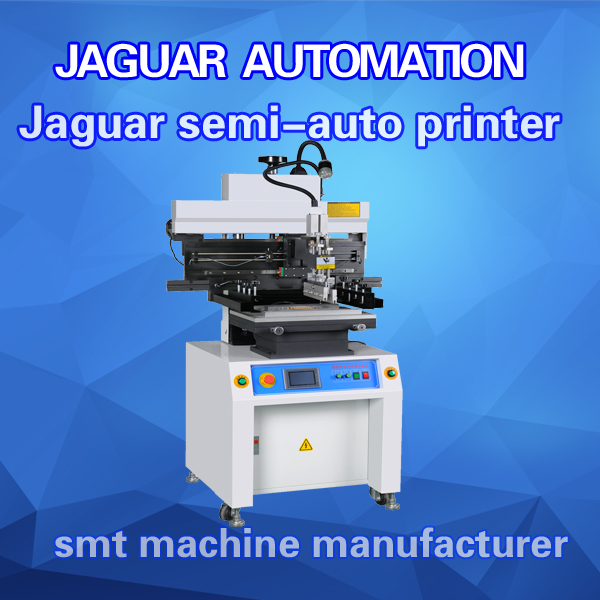

SPECIFICATIONS FOR JAGUAR S400 SEMI-AUTO SOLDER PASTE PRINTER

Model                 JAGUAR S400

Dimensions         850×720×1650mm

Platform size        320×400mm

PCB size                    250×350mm

Template size           550×680mm

Printing speed          0-8000mm/min

PCB thickness            0.2-2.0mm

PCB fine tuning range     Front/side±10mm

Power supply             1PAC220V 50/60HZ

Platform height          850±20mm

Repeating precision       ±0.02mm

Printing Accuracy            ±0.02mm

Positioning mode               Outside/Reference hole

Weight                              Approx.300Kg
