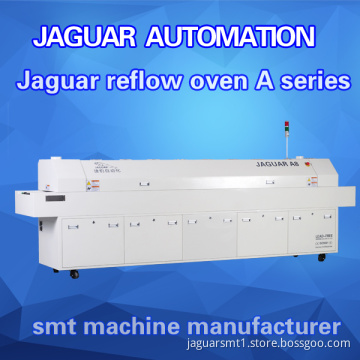

SMD /LED Soldering Machine PCB Board Oven Hot Air With High Quality and Best Price

No.1 The unique advanced long life heating system

1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely .

2.Using special high temperature resistant protection system in heating preservation system and special iron in furnace .

3.Using imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe, Model design, no noise, shockless and easy for maintenance .

No.2 Smooth and reliable transmission system

1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth ,speed range can be arrived at 0-1500mm/min.

2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up to ±20 mm/min .

No.3 Stable and reliable electrical control system

1.It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heating .

2. Using thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone .

3 .Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of outside temperature and calorific value, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform temperature in internal and the length ,direction, temperature distribution, all of these meet IPC standards .

Specification:
