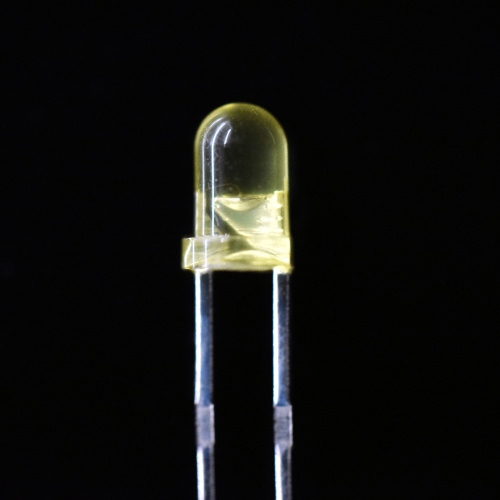

Super Bright Diffused 3mm Yellow LED 4000mcd
  • Super Bright Diffused 3mm Yellow LED 4000mcd
  • Super Bright Diffused 3mm Yellow LED 4000mcd
  • Super Bright Diffused 3mm Yellow LED 4000mcd
  • Super Bright Diffused 3mm Yellow LED 4000mcd
Super Bright Diffused 3mm Yellow LED 4000mcd
Super Bright Diffused 3mm Yellow LED 4000mcd
Super Bright Diffused 3mm Yellow LED 4000mcd
Super Bright Diffused 3mm Yellow LED 4000mcd

Super Bright Diffused 3mm Yellow LED 4000mcd

Get Latest Price
Min. Order:
5000 Piece/Pieces
Min. Order:
5000 Piece/Pieces
Transportation:
Ocean, Land, Air
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 1000000000 pcs/week
Supply Ability: 7000000000 pcs/week
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,EXW,FCA
Certificate: GB/T19001-2008/ISO9001:2008
HS Code: 8541401000
Transportation: Ocean,Land,Air
Port: SHENZHEN
Product Description
Product Description
304 are the most popular part number in our factory for 3mm through-hole LED. Then it will be the common 3mm LED as long as you see the 304 number in front of our LED Lamps part number. 304FYD-14 is the yellow LED that with yellow diffused lens. As we know, the yellow LED have a wavelength range from 580nm to 595nm. Different wavelength will got different emitting color. For the other color, such as the red LED, little wavelength's changed cannot make a big different on the color. However, for the yellow LED, even if there just got 5nm different, the different color still will be easy to find by our naked eyes. In this case, we will separate the yellow LED 2nm wavelength into one bag, which can ensure the uniform light output and the quality of the color.


- Size: 3mm Diameter 5.3mm High

- Pin length: 29mm

- Color: Yellow LED

- Type: Diffused yellow

- Chip brand:EPISTAR


- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance




-Dimension Parameters -

            3mm led size

 *1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.

These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

- Emitting Color -

3mm yellow led

*Colors in the photo was took by camera, please take actual emitting color as standard.


- Electrical Parameters -

304FYD-14 Yellow led

- Golden Wire Connection -

LED

*In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection
