3mm LED Long Leg Yellow LED High Bright

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

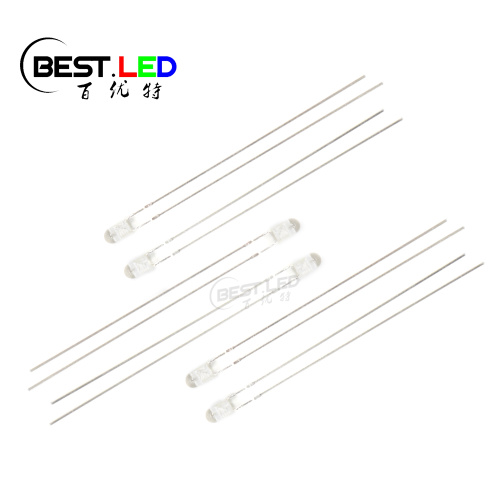

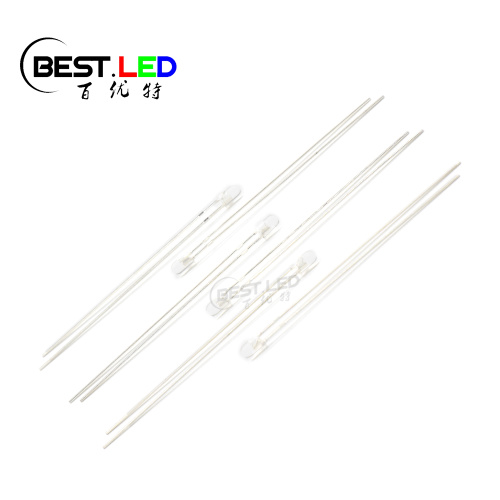

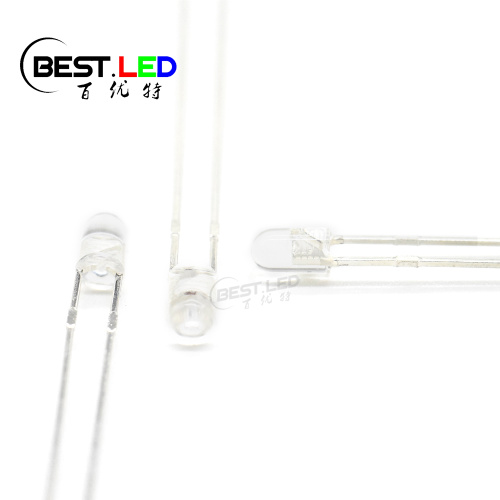

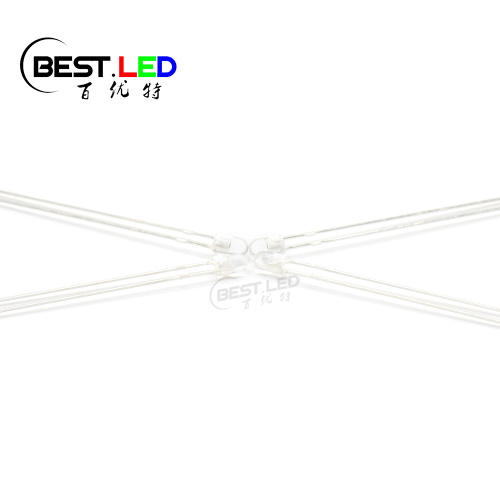

Yellow Clear 3mm Through-hole LED with Long Leg High Bright type ;

There will have kinds of brightness in this case for your choice. Super bright, high bright or common bright. On the other hand, In order to fit with different application and project, some time we need to change the pin's type or LED Lamps. Such as we can make it with kinds of length, 17mm, 29mm or even longer than that, 81mm. This 317FYC-10L86 are package with ultra long leg LED frame. One of the leg can reach 81mm length and the other one can be 79.5mm. Normally the longer pin will be anode and the shorter will be cathode. It's long enought to be cut short according to your usage.

Size of 317FYC-10L86 3mm LED Long Leg Yellow LED High Bright 590nm Amber LED Clear lens

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Forward Current	IF	20	mA
Forward Voltage	V	2.0-2.4V	V
Luminous Intensity	IV	3000-4000	mcd
Wavelength	λP	588-594nm	nm
Packing	Piece	1000	Bag
Vewing angle	2θ1/2	30	Deg
