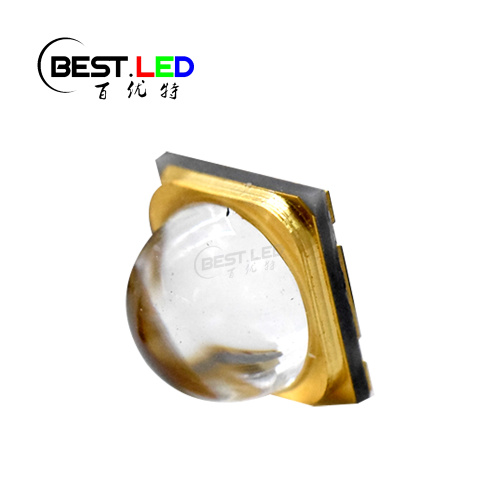

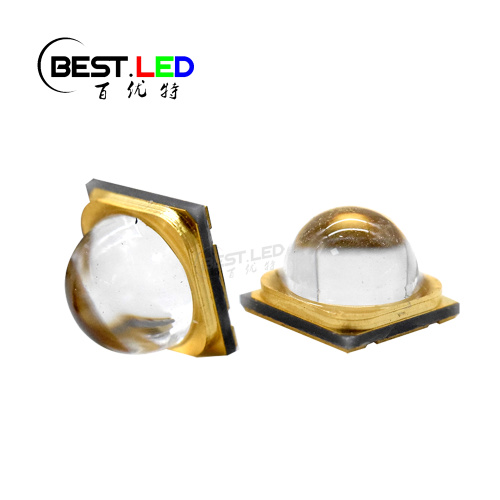

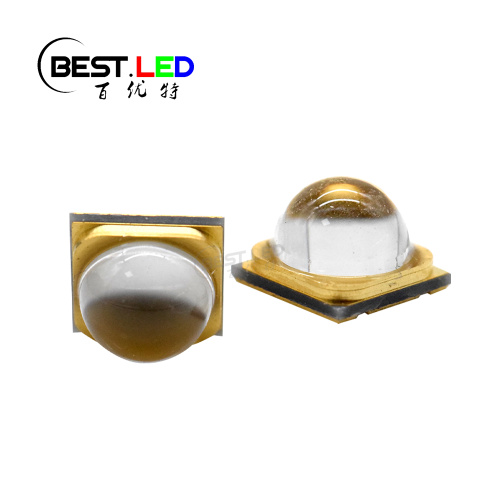

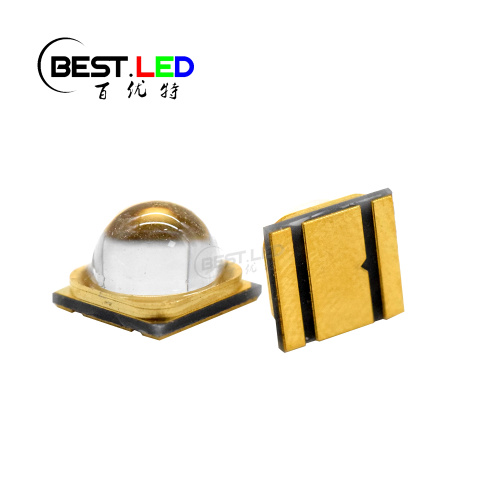

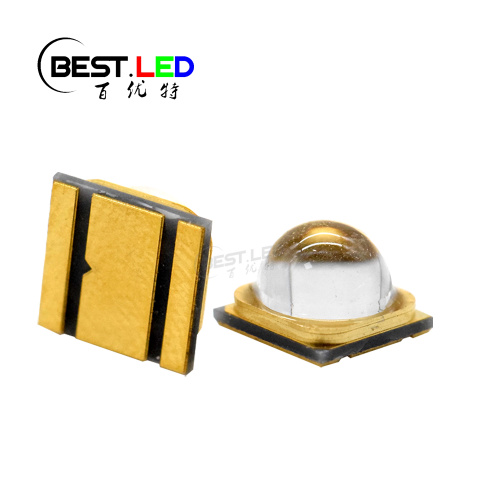

410nm High Power LED 6565 SMD Dome Lens
  • 410nm High Power LED 6565 SMD Dome Lens
  • 410nm High Power LED 6565 SMD Dome Lens
  • 410nm High Power LED 6565 SMD Dome Lens
  • 410nm High Power LED 6565 SMD Dome Lens
  • 410nm High Power LED 6565 SMD Dome Lens
410nm High Power LED 6565 SMD Dome Lens
410nm High Power LED 6565 SMD Dome Lens
410nm High Power LED 6565 SMD Dome Lens
410nm High Power LED 6565 SMD Dome Lens
410nm High Power LED 6565 SMD Dome Lens

410nm High Power LED 6565 SMD Dome Lens

Min. Order:
1000 Others
Min. Order:
1000 Others
Transportation:
Ocean, Land, Air, Express
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 1000000000000
Supply Ability: 10000000000/month
Payment Type: Paypal,T/T
Incoterm: FOB,CIF,EXW,FCA
Certificate: ISO:9001
HS Code: 8541410092
Transportation: Ocean,Land,Air,Express
Port: Shenzhen
Product Description
Product Description
This 6565 SMD LED with a high power package is an advanced lighting solution that emits lightin range of 410-420nm. Compare with common 410nm LED emitter, we package this LED with 6.5x6.5mm LED frame and a quartz glass lens on the top of SMD LED. Compare with 3535 SMD LED, this 6565 SMD LED will got bigger side. It's a product for high power UV LED. In this package, vertical crystals makes the UV emission power higher compared with the common flat top package.  On the other hand, the quartz glass lens will not change burnt black color after long time working. This LED will meet the standard of RoHs certification, viewing angle at 60 degree and a stable lighting performance. That is designed to provide intense and focused illumination, making it suitable for a wide range of applications that require a specific wavelength of light, such as industrial lighting. With this package size and efficient performance, this LED will offers a veratile and powerful lighting option for various indstries.
410nm 420nm LED emitter 6565 SMD LED
Electrical Parameters:

Parameter

Symbol

Rating

Unit

Power Dissipation

Pd

12

w

Pulse Forward Current

IFP

2000

mA

Forward voltage

IF

≤1000

mA

Reverse Voltage

VR

5

V

Junction Temperature

Tj

100

Operating Temperature

Topr

-40 - +80

Storage Temperature

Tstg

-40 - +100

Soldering Temperature

Tsol

245

Electro-Stati-Discharge(HBM)

ESD

1000

V

Service lige under normal conditions

Time

60000

H

Warranty

Time

2

Years

Antistatic bag

Piece

1000

Bag

*Pulse forward current confition: Duty 1% and Pulse width=10us.
*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

6

7

8

V



IF=1400mA

Total Radiated Power

PO

3000

-

5000

mw

IF=1400mA

Dominant Wavelength

λp

410                         420

nm

IF=1400mA

Half Width

λ△



50



nm

IF=1400mA

Viewing Half Angle

 θ1/2



60



deg

IF=1400mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.
*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
High Power UV LED Size:
Size of 410nm high power LED
*This package are also available in UV LED, Amber LED, Blue SMD LED, Red SMD LED ect. *
