Super Bright Green Oval Through-hole LED Lamp

Super Bright Green Oval Through-hole LED Lamp

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 520nm LED -

546LGD

This green oval through-hole LED Lamp was largely used in LED indicator, LED bill board ect. It's available the we package this oval LED lamp with encapsulation resin which contains anti-UV material. So this oval through-hole LED lamp can work perfect when it exposure to direct sunlight. We packaged this blue through-hole LED with oval diffused green lens. Green diffused case make this LED emits soft , diffused and very even light. Even when the LED didn't working, these LED still can be easy to distinguish the color. On the other hand, this blue LED got a two lead for the circuit, just need to pass the current through the LED pins, it will be light up. Which is easy to use by DIY LED project. Do you need some blue rectangular LED for your project? Contact us now~

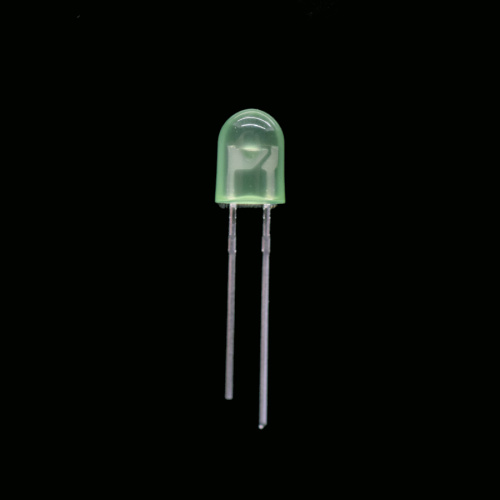

green oval led

- Size: 5mm*3.8mm*7mm High

- Pin length: 17mm

- Color: Green LED

- Lens type: Green diffused

- Different color are available

- Warranty: 5 Years

- Different wavelength are available

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

- Anti UV epoxy resin package

- High temperature resistance

- Dimension Parameters -

Oval 5mm LED lamp

*1. All dimensions are in millimeters ; 2. Tolerance is ± 0.10 mm unless otherwise noted.

We also packaged 365nm LED, 940nm LED, 850nm LED, Red through-hole LED,

Blue through-hole LED, IR LED with 5mm water clear lens.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	105	mW
Pulse Forward Current	IFP	100	mA
Forward Current	IF	30	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	°C
Operating Temperature	Topr	-40 ~ +80	°C
Storage Temperature Range	Tstg	-40 ~ +100	°C
Soldering Temperature	Tsol	260	°C
Electro-Static-Discharge(HBM)	ESD	2000	V
Warranty	Time	5	Years
Anti-static bag	Piece	1000	Back

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol		Min	Typ		Max	Unit	Test Condition
Forward Voltage	VF	2.8		3.0	3.4		V	IF=20mA

Luminous Intensity	IV	3500		4500	mcd	IF=20mA
Peak Wavelength	λP		525		nm	IF=20mA
Dominant Wavelength	λD	517	520	525	nm	IF=20mA
Half Width	Dl		15		nm	IF=20mA
Viewing Half Angle	2q1/2		±35/15		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	tr		10		ns	IF=20mA
Fall Time	tf		10		ns	IF=20mA
