- Pink LED -

504PC-8

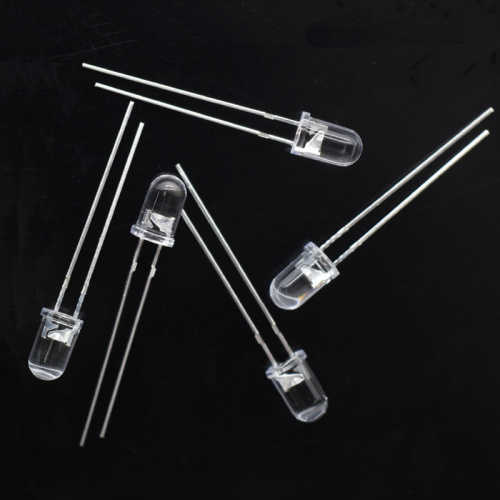

The principle of pink LED light is that led is made of III-IV compounds, such as GaAs, gap, GaAsP and other semiconductors, and its core is PN junction. Therefore, it has the I-N characteristics of general PN junction, i.e. forward conduction, reverse cut-off and breakdown characteristics. In addition, under certain conditions, it also has luminescent properties. Under the positive voltage, electrons are injected into the p region from the N region, and holes are injected into the N region from the p region. Some of the minority carriers entering the opposite region are combined with the majority of carriers to emit light. LED is a kind of solid-state semiconductor device that can convert electric energy into visible light, that is, light-emitting diode, which can directly convert electricity into light. Use pink phosphor to match, use blue chip to excite into pink LED. For 5mm pink LED, it can used in decoration LED lighting project or some other lighting application. Do you need some pink color LED for your application? Contact us for more detail about it!

-Dimension Parameters -

 *1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.

These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

- Golden Wire Connection -

*In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package this LED with 1000pcs in a bag Normally. We also can package it as your requirement.

- Production -

- Use -
