Super Bright Diffused 2mm Orange LED Nipple Shape
  • Super Bright Diffused 2mm Orange LED Nipple Shape
  • Super Bright Diffused 2mm Orange LED Nipple Shape
  • Super Bright Diffused 2mm Orange LED Nipple Shape
  • Super Bright Diffused 2mm Orange LED Nipple Shape
  • Super Bright Diffused 2mm Orange LED Nipple Shape
  • Super Bright Diffused 2mm Orange LED Nipple Shape
Super Bright Diffused 2mm Orange LED Nipple Shape
Super Bright Diffused 2mm Orange LED Nipple Shape
Super Bright Diffused 2mm Orange LED Nipple Shape
Super Bright Diffused 2mm Orange LED Nipple Shape
Super Bright Diffused 2mm Orange LED Nipple Shape
Super Bright Diffused 2mm Orange LED Nipple Shape

Super Bright Diffused 2mm Orange LED Nipple Shape

Min. Order:
10000 Piece/Pieces
Min. Order:
10000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 10000000000/month
Supply Ability: 10000000000/month
Payment Type: T/T,Paypal,WU
Incoterm: FOB,CFR,CIF,EXW,FCA
Certificate: ISO:9001
HS Code: 8541410090
Transportation: Ocean,Land,Air,Express
Port: Shenzhen
Product Description
Product Description

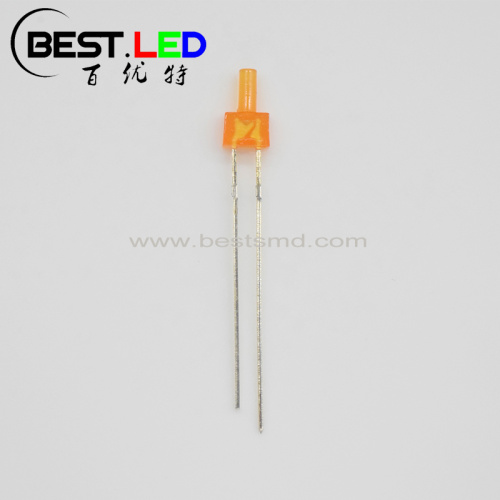

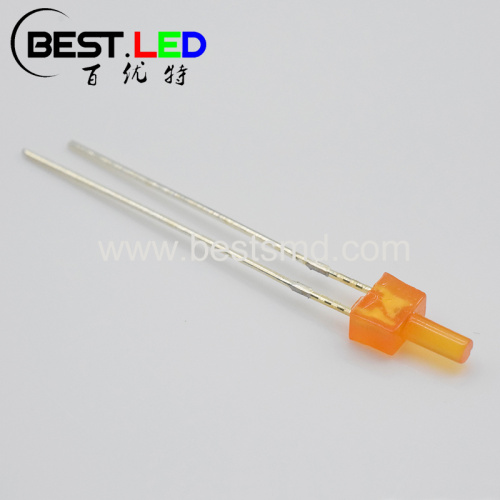

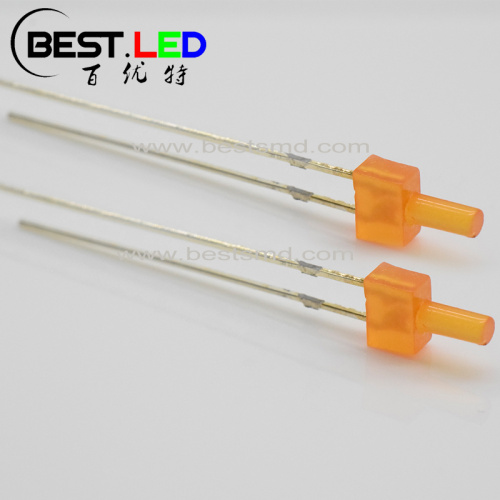

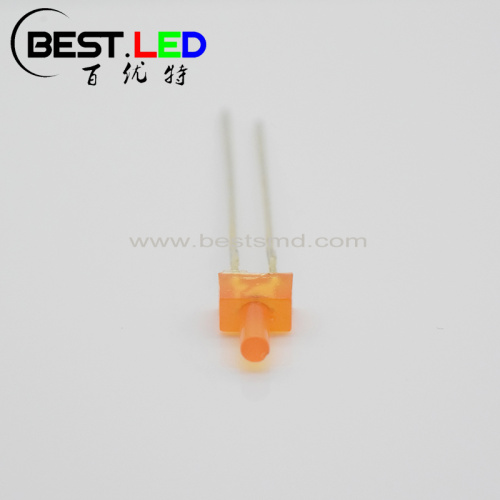

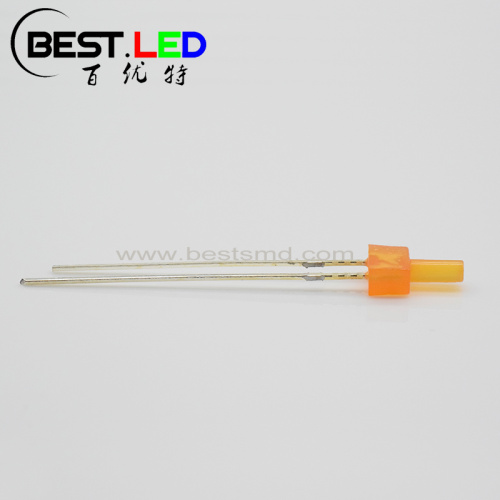

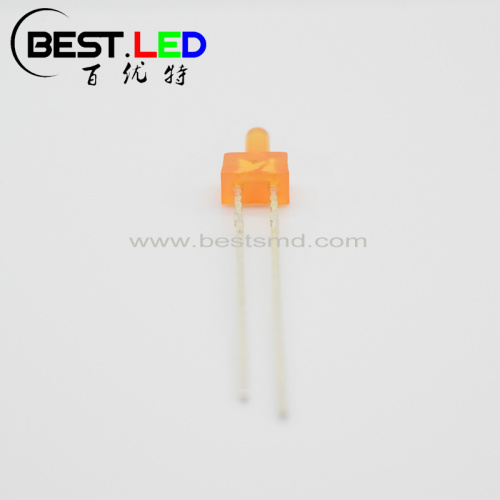

This 1014FOD-14 is a Through-hole LED Lamps that with a 2mm nipple shape on the top of LED lens. From the picture we can see this orange LED package with orange diffused lens(it's diffused becuase we cannot see the inside very clear through the lens). We are not only package this LED with orange lens but also put a orange LED chip inside, which is a 600nm LED. As long as we light up the LED, it will show beautiful color for your project. Because of the nipple shape on the top, this LED won't have a very concentrated emitting light when it's working. Instead, because of diffused lens, it will have a bigger lighting area through its body. Which will make people will a nice and soft lighting result. With this package, we also produce it with Amber LED, White LED, UV LED, Blue LED ect.

2mm LED Orange LED with diffused lens



*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter Symbol Rating Unit
Forward Current IF 100 mA
Forward Voltage V 2.2-2.6 v
Luminous Intensity IV 1-2 lm
Wavelength λP
600-605 nm
Packing Piece 1000 bag
Viewing angle 2θ1/2 140 Deg

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
