- Orange LED -

3528FOC60D3L10

Orange LED can also be called as amber LED,  3528FOC-60ES-10 was packaged by Epistar chip, high pure golden wire for inside connection and copper support. With this high quality material, this LED will got lower power consumption than common LED. These orange LED can reach 600-800mcd brightness at current 20mA. Operation voltage is 2.0-2.4V and wavelength is 605nm (±5nm). These SMD LED size is 3.5*2.8*1.9mm, small size will be easier to fit with kinds of PCB board. It widely used in LED lamp, LED back light, LED lighting project. This 3528FRC-60ES-10 was packaged by 605nm orange LED bare die. As we know, those LED have wavelength from 600nm to 680nm can emits red color. Even there have light red LED and deep red LED, you also can call it as red LED. With the different wavelength, this red LED will have different color and different application in products. The more longer wavelength, the more lower brightness will be on this red LED and the color will be more deeper.

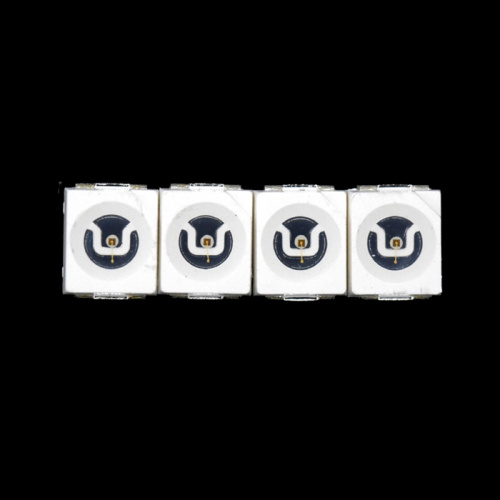

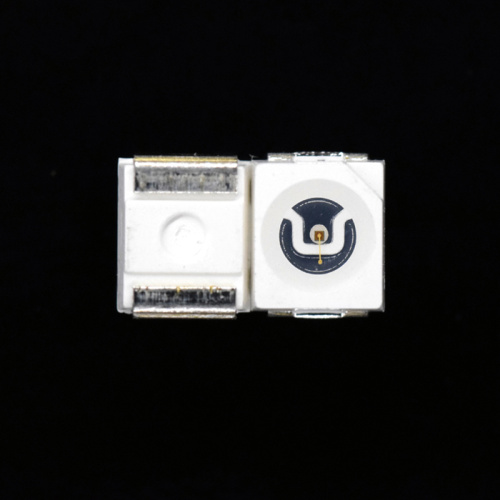

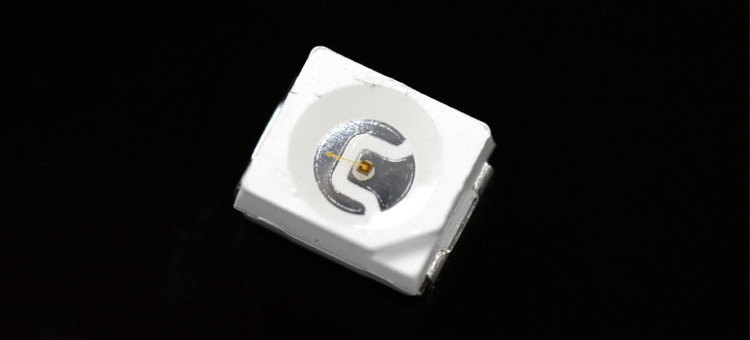

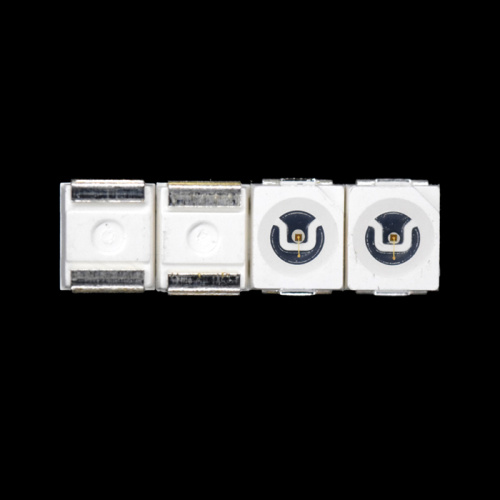

Orange LED - 3528 SMD LED

- Size: 3.5*2.8*1.9mm

- Chip Number: 1 chip

- Color: Orange LED

- Type: Surface mount device

- Chip brand: Epistar

- Polarity Mark Anode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance




-Dimension Parameters -

3528 SMD mark anode

These SMD LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

605nm LED

*Colors in the photo was took by camera, please take actual emitting color as standard.


- 605nm LED Reference Color Coordinate XY -

605nm led 3528 smd

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25

Parameter

Symbol

Rating

Power Dissipation

Pd

65mW

Pulse Forward Current

IFP

100mA

Forward Current

IF

30mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

115°C

Operating Tempertature

Topr

-40 - +80°C

Storage Tempertature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

1000v

Warranty

Time

5Years

Antistatic bag

Piece

2000Back

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

1.8


2.3

V

IF=20mA

Luminous Intensity

IV

600


800

mcd

IF=20mA

Peak Wavelength

λP


 610

615

nm

IF=20mA

Dominant Wavelength

λD

600

 605

612

nm

IF=20mA

Half Width

Dl


20


nm

IF=20mA

Viewing Half Angle

2q1/2


±60


deg

IF=20mA

Reverse Current

IR



10

uA

VR=5V

Rise Time

Tr


25


ns

IF=20mA

Fall Time

Tf


13


ns

IF=20mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


- Golden Wire Connection -

2835UYC-IC Flashing led

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection


- Packing -

3528 SMD LED package

*We package it with vacuum packing after tape it as a reel

- Application -

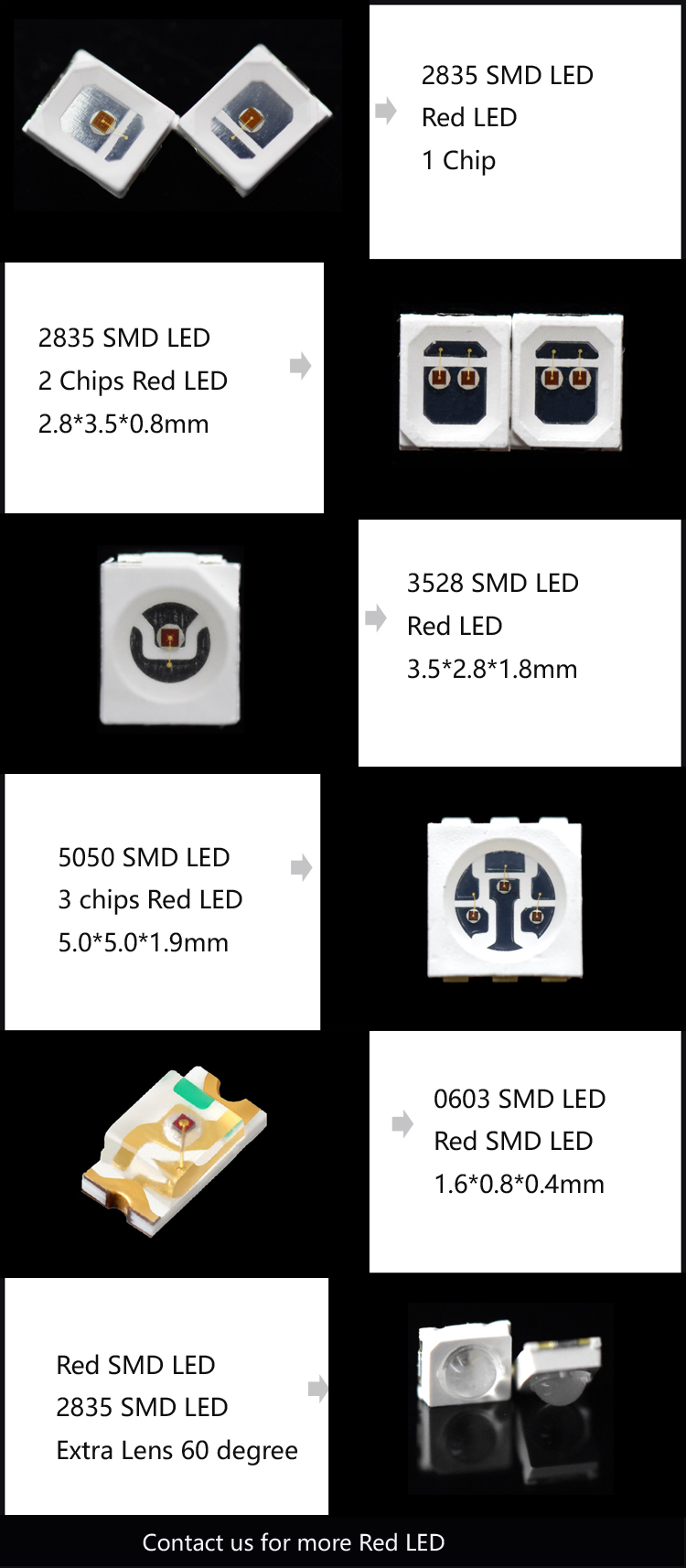

RED LED Application

- Related SMD LED -

Red SMD LED

- Production -

Production Process of LED

- Use -

SMD LED Use of attention
