Diffused 8mm RGB LED Common Anode

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 8mm RGB LED -

Z809FRBLGWD

For 8mm RGB LED with 4 pins, the epoxy lens can be like milk diffused lens or water clear lens. The former one will make the lights getting diffused and soft and the later(water clear lens) will make the like a spotlight and got a strong penetrating power. 8mm RGB Through-hole LED from Best LED factory can meet the RoHS, REACH and EN62471 certification. This 8mm RGB LED was born for the Ultra-bright full-color 8mm full-color exposure string, 12mm full-color straw hat type perforated LED string, long-range irradiation RGB color lamp ect.

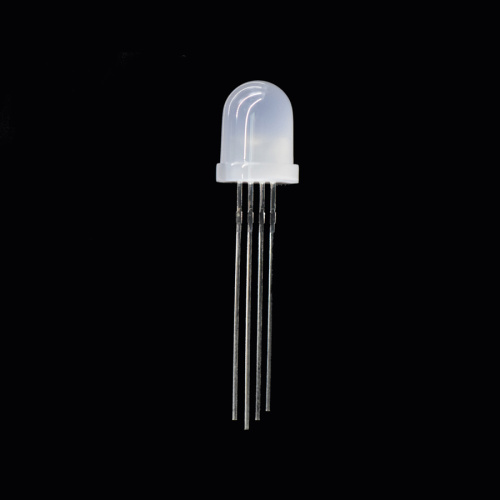

8mm RGB LED

- Size: ￠8.0*H11mm

- Chip Number:3 chips

- Color: RGB

- Type: white diffused

- Chip brand: Sanan

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

8mm rgb LED

These Through-hole LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter		Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	Red	IV	2000	3000	---	mcd	IF=60mA
	Green		5000	---	7000
	Blue		1000	2000	---
	Red	IV	7	---	12	lm	IF=60mA
	Green		14	---	20
	Blue		5	---	10
Forward Voltage	Red	VF	1.9-2.3			V	IF=60mA
	Green		2.9-3.5
	Blue		2.9-3.5
Dominant Wavelength	Red	WD	620	623	625	nm	IF=60mA
	Green		520	522	527	nm
	Blue		462	468	470	nm
Viewing Angle		2q1/2	---	120	---	deg	IF=60mA
Reverse Current	Red/Green/Blue	IR	---	---	5/5/5	uA	VR=5V
Working Life	Red/Green/Blue	Time	---	80000	---	h	IF=60mA
