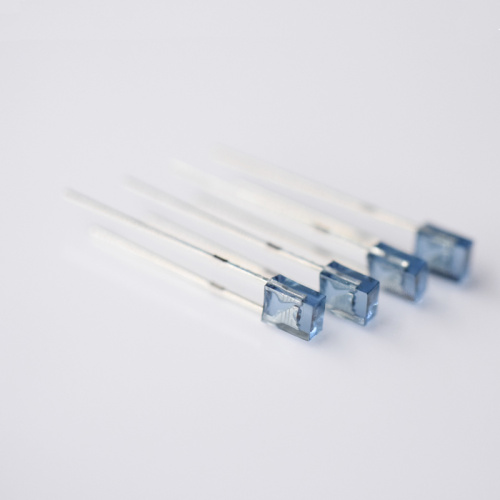

The 980nm LED is an infrared LED that is used in a variety of applications, such as medical imaging, security and surveillance, and industrial sensing. It is a low-power LED that emits a wavelength of light that is invisible to the human eye. The 980nm LED is also used in fiber optic communications, as it is able to send data over long distances with little loss of signal.980nm infrared LED are widely used in kinds of application such as medical industry, remote control system or some other application ect. Do you need some 980nm LED for your project? Contact us for more detail for that! Through-hole LED also have different size as same as SMD LED even they all got 2 pins (or 3 pins, 4 pins electric connection. As you can see in the picture as follow, we packaged this 980nm LED with light blue rectangle lens and this lens size is 2*3*2mm. With this rectangle shape, this infrared through-hole LED will got a flat top emitting area that make this IR LED got more wider viewing angle than the other 3mm or 5mm round top(or straw hat top) infrared LED. Let us know your requirement than we will make this 980nm LED be better for you!

980nm led

- Size: 2mm*3mm*2mm High

- Pin length: 17mm

- Color: 980nm LED

- Type: blue clear

- Chip brand:e Epistar

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

2x3x4size

*1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.

These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter

Symbol

Rating

Power Dissipation	Pd	300mW
Pulse Forward Current	IFP	1000mA
Forward Current	IF	150mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	100°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000pcs

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Radiant Intensity

Ee

5

9

mW/sr

IF=20mA

15

20

IF=50mA

30

40

IF=100mA

Viewing Angle

2q1/2

120

deg

IF=100mA

Peak Wavelength

λp

970

980

nm

IF=100mA

Spectral Bandwidth

Dl

45

nm

IF=100mA

Forward Voltage

VF

1.1

1.2

1.4

V

IF=20mA

1.2

1.3

1.5

IF=50mA

1.3

1.6

IF=100mA

Reverse Current

IR

5

uA

VR=5V

*Luminous Intensity is measured by ZWL600.

*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

*In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection
