- Size of 5mm  Through-hole LED -

*The short pin is cathode.

*1. All dimensions are in millimeters ;           2. Tolerance is ± 0.10 mm unless otherwise noted.

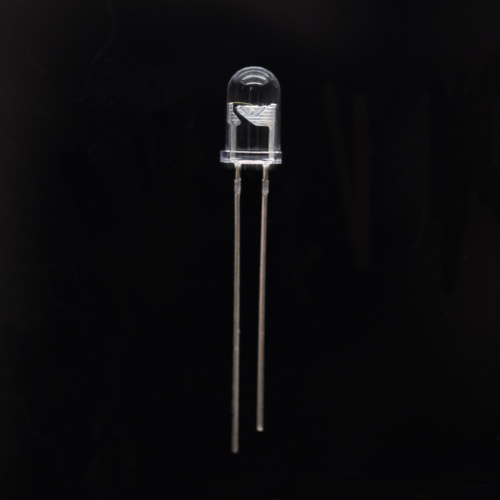

Blue through-hole LED, IR LED with 5mm water clear lens.

-  Through-hole LED Radiant  -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	200mw
Pulse Forward Current	IFP	300mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.5	1.6	1.8	V	IF=20mA
		1.6	1.8	2.0	V	IF=60mA
		1.9	2.0	2.4	V	IF=100mA
Luminous Flux	Φ		0.05		lm	IF=20mA
			0.12		lm	IF=60mA
			0.16		lm	IF=100mA
Luminous Power	PO	6		15	mw	IF=20mA
		20		35	mw	IF=60mA
		35		50	mw	IF=100mA
Radiant Intensity	Ee	70		80	mw/sr	IF=100mA
Peak Wavelength	λP		740	745	nm	IF=20mA
Half Width	Dl		24		nm	IF=20mA
Viewing Half Angle	2q1/2		±30		deg	IF=20mA
Reverse Current	IR			10	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection
