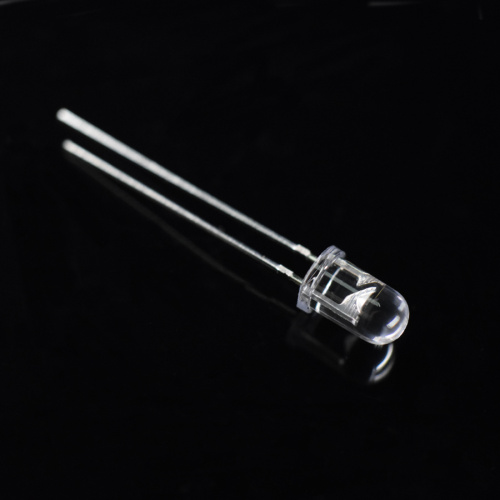

503FIRC-73L/14I100-60A is a 730nm infrared LEDs that's widely used in medical infrared therapy and some beauty industry. Single color 5mm 730nm IR LED are available in Best LED factory. The chip size is 350um*350um.These 730nm IR LED was packaged by 5mm through-hole LED case with clear epoxy lens and high purity golden wire inside for the connection. With this high quality raw material, this IR LED will got longer life solid state reliability and low power consumption. As we know, there will have kinds of viewing angle on through-hole LED for choose. Same as this case, these 730nm IR LED got 60 degree viewing angle, if you need it to be other viewing angle, just feel free to contact us so that we can produce it as your requirement. Do you need some 730nm infrared LED for your project? Contact us for more detail, this one won't let you disappointment~

5mm 730nm Infrared led

- Size: 5.0*H8.7mm

- Chip Number:1 chip

- Color: 730nm LED

- Type: water clear

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 5mm Through-hole LED -

5mm LED Size

*The short pin is cathode.

- Through-hole LED Radiant -

60degree ir led

*Colors in the photo was took by camera, please take actual emitting color as standard.

- 730nm LED XY -

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter

Symbol

Rating

Power Dissipation

Pd

200mw

Pulse Forward Current

IFP

300mA

Forward Current

IF

100mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

115°C

Operating Tempertature

Topr

-40 - +80°C

Storage Tempertature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

3000v

Warranty

Time

5Years

Antistatic bag

Piece

1000Back

Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

1.5
1.6
1.8

V

IF=20mA

1.6 1.8 2.0
V
IF=60mA

1.9 2.0 2.4
V
IF=100mA

Luminous Flux

Φ

0.05

lm

IF=20mA

0.12

lm IF=60mA

0.16

lm IF=100mA

Luminous Power PO
6

15 mw IF=20mA

20

35 mw IF=60mA

35

50 mw IF=100mA

Radiant Intensity
Ee 70
80 mw/sr IF=100mA

Peak Wavelength

λP

730
735

nm

IF=20mA

Half Width

Dl

24

nm

IF=20mA

Viewing Half Angle

2q1/2

±30

deg

IF=20mA

Reverse Current

IR

10

uA

VR=5V

Luminous Intensity is measured by ZWL600.

q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
