As we know, for through-hole LED, there always have kinds of viewing angle for choose. This infrared LED 503IRC-94L/14I100-60A features 940nm wavelengths and 60 degree viewing angle. These infrared LED lamp are sensitive electronic devices, if you need some 940nm LED for your project, this one won't let you disappointment. For some project, people not just need the 940nm universal LED IR infrared emitter emission but also need some receiver diode. When you also need some receiver LED, just feel free to let us know, we also have this for your application. It's well know that infrared LED is a invisible light. But for some wavelength it's still can be see by naked eyes. The main advantage of the 940nm wavelength is that it's completely invisible. Do you need some 940nm IR LED for your project? Contact us for more detail!

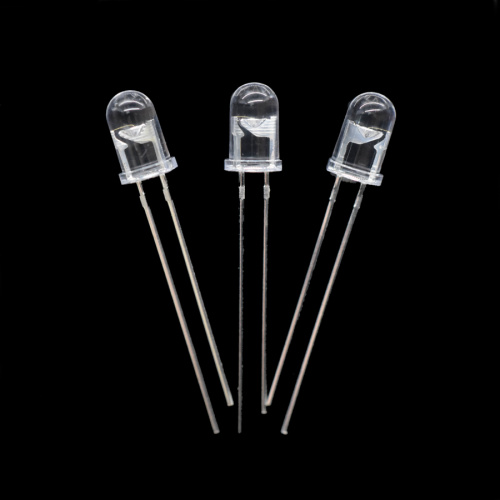

5mm infrared led - 940nm

- Size: 5.0*H8.7mm

- Chip Number:1 chip

- Color: 940nm LED

- Type: water clear

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 5mm Through-hole LED -

5mm LED

- Through-hole LED Radiant -

940nm IR LED

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	180mw
Pulse Forward Current	IFP	1000mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

1.4

1.8

V

IF=100mA

2.5 V IFP=1000mA

Radiant Intensity

IE

8

15
mw/sr

IF=100mA

80
mw/sr IFP=1000mA

Peak Wavelength

λP

940

nm

IF=100mA

Half Width

Dl

50

nm

IF=100mA

Viewing Half Angle

2q1/2

±30

deg

IF=100mA

Reverse Current

IR

5

uA

VR=5V

Rise Time

Tr

25

ns

IF=100mA

Fall Time

Tf

13

ns

IF=100mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden wire commection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- LED Packing -

5mm led

*We can pack this LED with any number of packages and taped or bend the LED pins as your requirement.
