-Infrared LED Lamps-

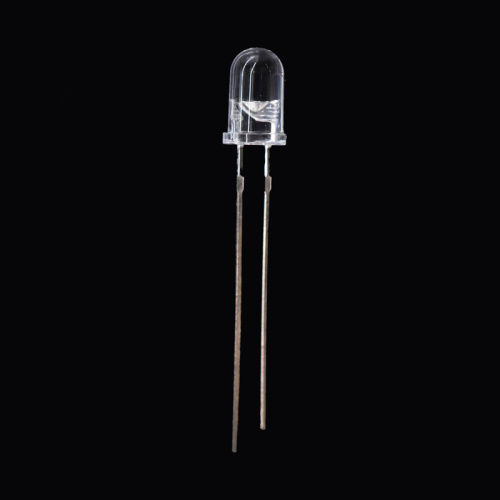

503FIRC-80L14I150-30A

Infrared LED lamps, the products are strictly tested, small size, large angle, high brightness, manufacturers directly provide all kinds of lamp beads, wholesale + customization! Infrared LED, the products are widely used in kinds of IR LED night vison camera or some infrared LED therapy. Commonly, the more wider viewing angle you got, the more bigger radiation area you can got. But with more narrow angle, you will got more longer radiation when this infrared LED is working~Do you need some 800nm LED for your project? Contact us for more detail about it. If this viewing angle still not narrow enough for your project, just feel free to let me know. We also can make it with narrower angle for you~ Is it the 800nm infrared LED lamps with viewing angle of 60 degree, 45 degree or 90 degree still too wide for you? Try this one~ We package this infrared LED with 5mm through-hole LED, clear lens AND 30 degree viewing angle, which is wider than the others. So this 5mm 800nm infrared LED emitter will got a longer radiation distance than other infrared LED with angle like 90 degree, 60 degree ect.

800nm IR LED

- Size: 5.0*H8.7mm

- Chip Number:1 chip

- Color: 800nm LED

- Type: water clear

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 5mm Through-hole LED -

5mm LED

*1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.

These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

- Through-hole LED Radiant -

800nm IR LED

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Through-hole LED Parameter -

Parameter	Symbol	Rating
Power Dissipation	Pd	190mw
Pulse Forward Current	IFP	1000mA
Forward Current	IF	150mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Radiant Intensity	Ee	60		90	mW/sr	IF=20mA
		140		190		IF=50mA
		320		380		IF=100mA
Viewing Angle	2q1/2		30		deg	IF=100mA
Peak Wavelength	λp	800	805	810	nm	IF=100mA
Spectral Bandwidth	Dl		50		nm	IF=100mA
Forward Voltage	VF	1.3	1.4	1.6	V	IF=20mA
		1.5	1.6	1.8		IF=50mA
		1.5	1.6	1.9		IF=100mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
