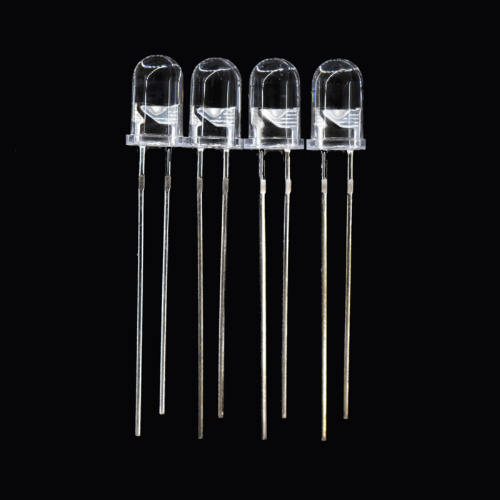

- Size of 5mm  Through-hole LED -

-  Through-hole LED Radiant  -

*Colors in the photo was took by camera, please take actual emitting color as standard.

-  Through-hole  LED Parameter  -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	200mw
Pulse Forward Current	IFP	1000mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.5	1.6	1.9	V	IF=20mA
			1.9	2.2	V	IF=60mA
			2.0	2.5	V	IF=100mA
Luminous Flux	Φ		0.03		lm	IF=20mA
			0.08		lm	IF=60mA
			0.13		lm	IF=100mA
Luminous Power	PO	10		20	mw	IF=20mA
				50	mw	IF=60mA
				80	mw	IF=100mA
Radiant Intensitye	Ee	80		100	mw/sr	IF=100mA
Peak Wavelength	λP	755	780	785	nm	IF=20mA
Half Width	Dl		25		nm	IF=20mA
Viewing Half Angle	2q1/2		±15		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
