Viewing angle of 60 degree, 45 degree or 90 degree still too wide for you? Try this one~ We package this infrared LED 503FIRC-76L14I100-30A with 5mm through-hole LED, clear lens AND 30 degree viewing angle, which is wider than the others. So this 5mm 760nm infrared LED emitter will got a longer radiation distance than other infrared LED with angle like 90 degree, 60 degree ect. Commonly, the more wider viewing angle you got, the more bigger radiation area you can got. But with more narrow angle, you will got more longer radiation when this infrared LED is working~Do you need some 760nm LED for your project? Contact us for more detail about it. If this viewing angle still not narrow enough for your project, just feel free to let me know. We also can make it with narrower angle for you~

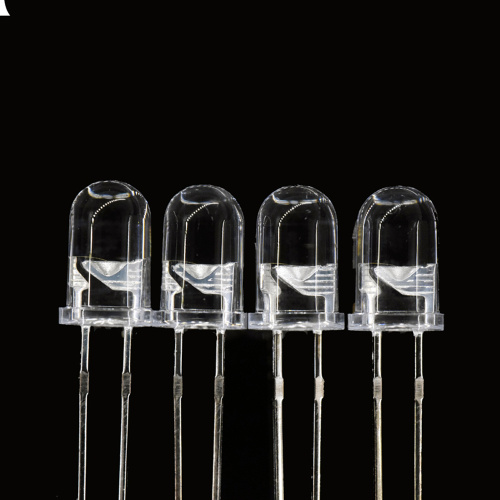

760nm IR LED 5mm

- Size: 5.0*H8.7mm

- Chip Number:1 chip

- Color: 760nm LED

- Type: water clear

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 5mm Through-hole LED -

5mm LED

- Through-hole LED Radiant -

760nm IR LED

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Through-hole LED Parameter -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	200mw
Pulse Forward Current	IFP	1000mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.5	1.6	1.9	V	IF=20mA
		1.7	1.9	2.2	V	IF=60mA
		1.9	2.0	2.5	V	IF=100mA
Luminous Flux	Φ		0.04		lm	IF=20mA
			0.09		lm	IF=60mA
			0.14		lm	IF=100mA
Luminous Power	PO	10		20	mw	IF=20mA
		35		50	mw	IF=60mA
		60		80	mw	IF=100mA
Radiant Intensitye	Ee	80		90	mw/sr	IF=100mA
Peak Wavelength	λP	755	760	770	nm	IF=20mA
Half Width	Dl		25		nm	IF=20mA
Viewing Half Angle	2q1/2		±22		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden wire connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection
