750nm Infrared LED Emitter 5mm DIP LED 45-Degree

750nm Infrared LED Emitter 5mm DIP LED 45-Degree

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

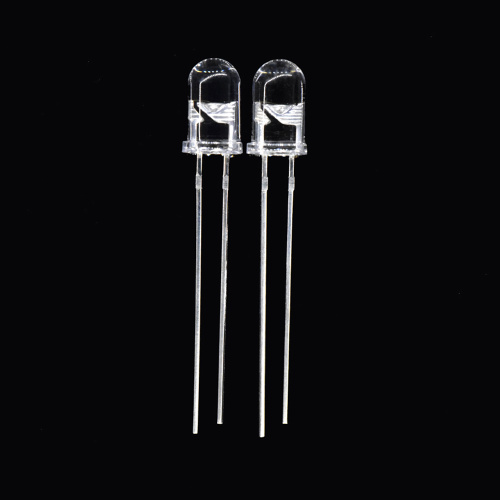

This 750nm LED 503FIRC-75L14I150-45A was package by 5mm through-hole LED and clear case, which is one of the infrared LED Lamps. Some infrared LED can be used in remote control, which is use infrared to send the control signals. Many missiles for anti-aircraft warfare find their target by infrared. 750nm LED, 760nm LED ect. infrared LED lamps can be widely used in some infrared therapy and other application. For this 750nm IR LED as follow, we packaged it with 45 degree viewing angle, so that it will have a longer radiation than those 30 degree through-hole IR LED and 10 degree through-hole IR LED. Do you need some 750nm infrared LED for your project? Contact us for more detail about it. With the high quality material, this infrared LED lamps won't let you disappointment~

750nm IR LED 5mm led

- Size: 5.0*H8.7mm

- Chip Number:1 chip

- Color: 750nm LED

- Type: water clear

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 5mm Through-hole LED -

5mm LED

*1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.

These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

- Through-hole LED Radiant -

750nm IR LED

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Through-hole LED Parameter -

Parameter	Symbol	Rating
Power Dissipation	Pd	190mw
Pulse Forward Current	IFP	1000mA
Forward Current	IF	150mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Radiant Intensity	Ee	0.5		1.5	mW/sr	IF=20mA
		4	6			IF=50mA
		10		15		IF=100mA
Viewing Angle	2q1/2		45		deg	IF=100mA
Peak Wavelength	λp	750	755	760	nm	IF=100mA
Spectral Bandwidth	Dl		50		nm	IF=100mA
Forward Voltage	VF	1.4	1.5	1.7	V	IF=20mA
		1.5	1.6	1.8		IF=50mA
		1.5	1.6	1.9		IF=100mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
