780nm LED Emitter IR 5mm Through-hole LED 45-degree

780nm LED Emitter IR 5mm Through-hole LED 45-degree

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

People will may think that all the Infrared LED Lamps are not visible in our naked human eyes. But actually, the wavelength range where optical radiation is visible does not have a very sharp borders. Some people think the visible wavelength range is 365nm to 780nm. In fact, you even can see some dim red spot when some high power 940nm LED is working. Infrared radiation is used in industrial, scientific, military, law enforcement and medical applications. Night vision devices using active near-infrared illumination allow observation of a person or animal without detecting an observer. Infrared astronomy uses a telescope with sensors to penetrate the spatial regions of the dust, such as molecular clouds, to detect objects such as planets, and to observe highly red-shifted objects in the early universe. Infrared thermal imaging cameras are used to detect heat loss in insulation systems, to observe changes in blood flow in the skin, and to detect overheating of electrical equipment.

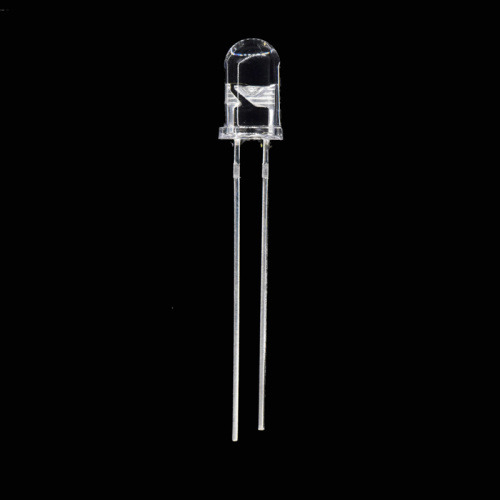

780nm 5mm led

- Size: 5.0*H8.7mm

- Chip Number:1 chip

- Color: 780nm LED

- Type: water clear

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 5mm Through-hole LED -

5mm LED

- Through-hole LED Radiant -

5mm 780nm IR LED

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	200mw
Pulse Forward Current	IFP	1000mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.5	1.6	1.9	V	IF=20mA
		1.7	1.9	2.2	V	IF=60mA
		1.9	2.0	2.5	V	IF=100mA
Luminous Flux	Φ		0.04		lm	IF=20mA
			0.09		lm	IF=60mA
			0.13		lm	IF=100mA
Luminous Power	PO	10		20	mw	IF=20mA
		35		50	mw	IF=60mA
		60		80	mw	IF=100mA
Radiant Intensitye	Ee	70		90	mw/sr	IF=100mA
Peak Wavelength	λP	755	780	785	nm	IF=20mA
Half Width	Dl		25		nm	IF=20mA
Viewing Half Angle	2q1/2		±22		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden wire connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection
