740nm LED Emitter Infrared 5mm Through-hole LED 45-degree

740nm LED Emitter Infrared 5mm Through-hole LED 45-degree

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

Not only 730nm infrared LED can be used in infrared LED therapy, but 740nm LED, 740nm LED, 760nm LED can widely used in kinds of IR LED therapy machine. There also have kinds viewing angle on this through-hole LED for your choose. Different viewing angle will make different lighting result, you can choose any one of them for your project. Do you need some 740nm LED emitter for your project? Contact us know, this product with long life solid state reliability and low power consumption wont't let you disappointment. As we know, infrared LED do emits red light when they are working. Do you think all of the infrared LED are cannot see by our naked eyes? Then you might got it wrong on this case~ But the more longer wavelength, the less red brightness you will get on. As we know, there have a strong power when you used the 740nm laser diode, you must use it carefully otherwise you will burn yourself. But for this, we packaged this with 740nm LED chip and clear lens. Which is just a light emitting diode.

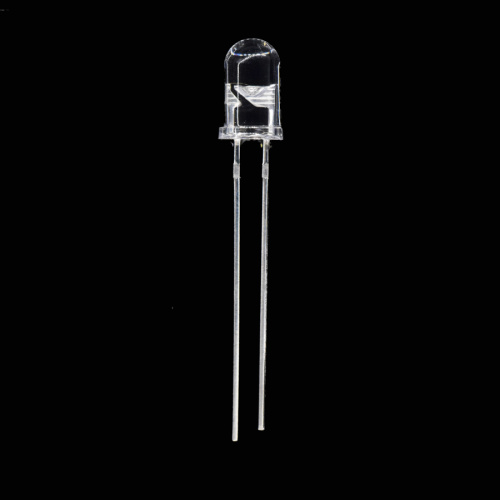

5mm led

- Size: 5.0*H8.7mm

- Chip Number:1 chip

- Color: 740nm LED

- Type: water clear

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 5mm Through-hole LED -

5mm LED

- Through-hole LED Radiant -

740nm IR LED

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Through-hole LED Parameter -

Absolute Maximum Ratings At Ta=25℃

Parameter

Symbol

Rating

Power Dissipation

Pd

200mw

Pulse Forward Current

IFP

300mA

Forward Current

IF

100mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

115°C

Operating Tempertature

Topr

-40 - +80°C

Storage Tempertature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

3000v

Warranty

Time

5Years

Antistatic bag

Piece

1000Back

Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

1.4
1.6
1.9

V

IF=20mA

1.8 1.9 2.3
V
IF=60mA

1.9 2.0 2.5
V
IF=100mA

Luminous Flux

Φ

0.05

lm

IF=20mA

0.12

lm IF=60mA

0.16

lm IF=100mA

Luminous Power PO
8

15 mw IF=20mA

20

35 mw IF=60mA

35

50 mw IF=100mA

Radiant Intensitye
Ee 40
60 mw/sr IF=100mA

Peak Wavelength

λP

735
740
745

nm

IF=20mA

Half Width

Dl

25

nm

IF=20mA

Viewing Half Angle

2q1/2

±22

deg

IF=20mA

Reverse Current

IR

5

uA

VR=5V

Luminous Intensity is measured by ZWL600.

q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
