730nm LED 5mm Infrared LED Lamp

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

-Infrared LED Lamps-

503FIRC-73L/14I100-45A

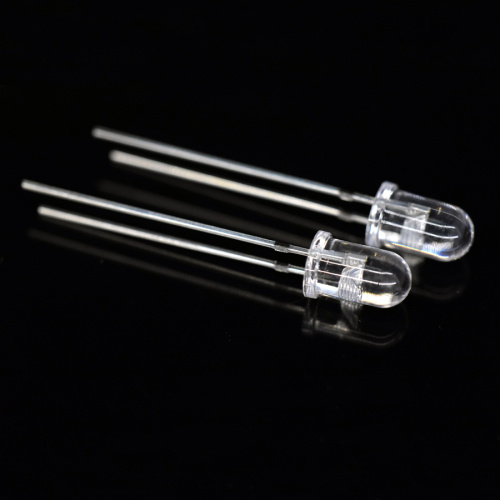

These 5mm 940nm infrared LED was packaged by clear lens. infrared LED has a longer wavelength that visible light. People cannot see it with the naked eye. If you really need to diagnose it this 940nm LED working or not, you can see it by your phone or camera, these 940nm IR LED will grow with dim purple color in your machine. 503IRC-94L/12I60-45A is a 940nm infrared through-hole LED with 45 degrees lens IR LED, if you need other angle for this IR LED, just feel free to let us know and we can produce this LED as your requirement.

5mm led

- Size: 5.0*H8.7mm

- Chip Number:1 chip

- Color: 730nm LED

- Type: water clear

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 5mm Through-hole LED -

5mm LED

- Through-hole LED Radiant -

730nm IR LED

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Through-hole LED Parameter -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	220mW
Pulse Forward Current	IFP	350mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

1.8

2.5

V

IF=100mA

Pulse Forward Voltage

VF

3.2

V

IFP=350mA

Radiant Intensity

IE

120

160

mw/sr

IF=100mA

Peak Wavelength

λP

720

730

740

nm

IF=100mA

Total Radiated Power

PO

17

mw

IF=100mA

Half Width

Dl

50

nm

IF=100mA

Viewing Half Angle

2q1/2

±22

deg

IF=100mA

Reverse Current

IR

5

uA

VR=5V

Rise Time

Tr

25

ns

IF=100mA

Fall Time

Tf

13

ns

IF=100mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device

- Golden wire commection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- LED Packing -

5mm led

*We can pack this LED with any number of packages and taped or bend the LED pins as your requirement.
